To purchase parts for the 440ST (Main Assembly - Deck RF037300):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

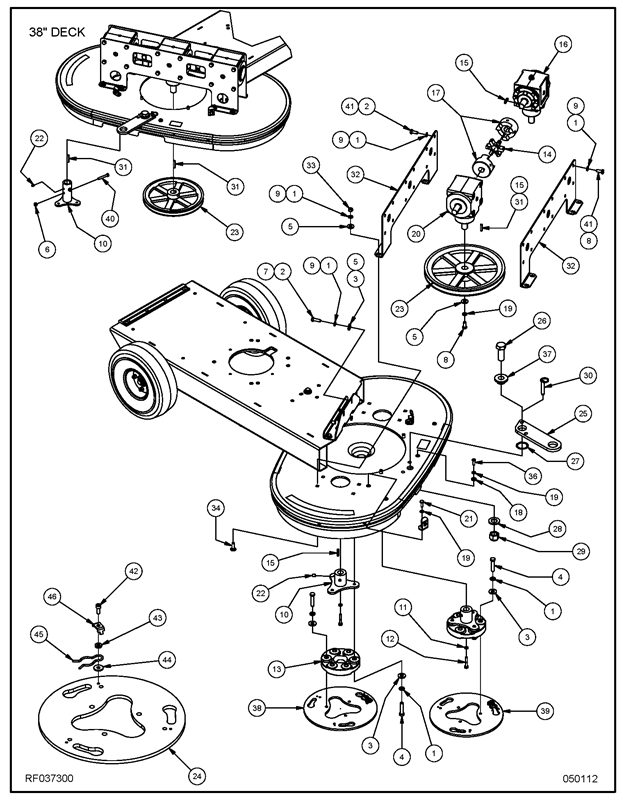

440ST Main Assembly Deck RF037300 1

ItemPart NumberDescription QTY ItemPart NumberDescription QTY
1AMX1075WASHER, LOCK, 3/8” (30”)1221NB019100BOLT, HEX, 1/4” X 3/4”2
1BMX1075WASHER, LOCK, 3/8” (38”)3622NB2463SCREW, SET, 5/16” X 3/8”4
2NB6042BOLT, HEX, 3/8” X 1-1/4” (38”)223AMP037600PULLEY, 10.75” X 3/4” (30”)1
3ANB3450WASHER, FLAT, 3/8” (30”)1223BMP037300PULLEY, 10.75” X 1” (38”)1
3BNB3450WASHER, FLAT, 3/8” (38”)1424MP331100PLATE, ATTACH, HEAD1
4NB024500BOLT, HEX, 3/8” X 1-3/4”1225MP397901PLATE, PIVOT, HOOK1
5ANB9267WASHER, FLAT, 5/16” (30”)3126NB035400BOLT, HEX, 3/4” X 2-1/2”1
5BNB9267WASHER, FLAT, 5/16” (30”)3827NB033500WASHER, WAVE1
6NB3265NUT, LOCK, 5/16” (38”)228NB018600WASHER, FLAT, 3/4”1
7NB6545BOLT, HEX, 5/16” X 1” (30”)229NB035500NUT, LOCK, 3/4”1
8NB9745BOLT, HEX, 5/16” X 3/4”2330NB035800PIN, PULL, 3/8” X 1-1/2”1
9ANB6111WASHER, LOCK, 5/16” (30”)3231NB7802KEY, 1/4” X 1-1/2”3
9BNB6111WASHER, LOCK, 5/16” (38”)832AMP388401BRACKET, GEARBOX (30”)2
10ABA018500HUB, DRIVE, 3/4” (30”)232BMP388701BRACKET, GEARBOX (38”)2
10BBA019100HUB, DRIVE, 1” (38”)233NB3260NUT, HEX, 5/16”8
11NB025700WASHER, LOCK, 1/4” (30”)234NB5000BOLT, CARRIAGE, 5/16” X 1”8
12NB030500BOLT, HEX, 1/4” X 1-1/2” (30”)235MP391800BRACKET, COVER, ASM.2
13MP317700COUPLING, FLEXI236NB049000SCREW, BH, 1/4” X 3/4”1
14MP037500SPIDER, L099, 1”237MP389200BUSHING, PIVOT, HOOK1
15ABA003200KEY, 3/16” X 1” (30”)738MP390700PLATE, ATTACH, RS, ASM.1
15BMP7801KEY, 1/4” X 1” (38”)439MP390800PLATE, ATTACH, LS, ASM.1
16AMP363200GEARBOX, RIGHT ANGLE (30”)240NB011800BOLT, HEX, 5/16” X 2”2
16BBA017500GEARBOX, RIGHT ANGLE (38”)241NB6851BOLT, HEX, 3/8” X 3/4”22
17AMP196700HUB, L099, .75” BORE (30”)442NB060500SCREW, #10 X 1/2”1
17BMP037400HUB, L099, .1.00” BORE (38”)443NB060600WASHER, .20” ID X .44” OD1
18NB3350WASHER, FLAT, 1/4”144NB060700WASHER, .22” ID X .63” OD1
19NB6110WASHER, LOCK, 1/4”345NB024100PIN, HITCH1
20ABA017200GEARBOX, “T” DRIVE (30”)146MP098700RETAINER, PIN1
20BBA017400GEARBOX, “T” DRIVE (38”)1
