To purchase parts for the 440ST (Engine Assembly RF037600):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

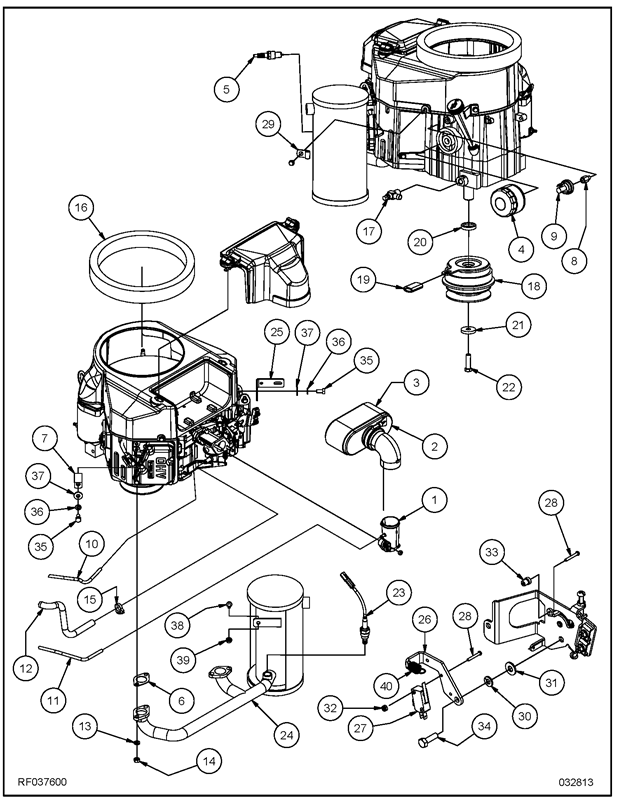

440ST Engine Assembly RF037600 1

ItemPart NumberDescription QTY  ItemPart NumberDescription QTY
1KA160600742PIPE, INTAKE1 21MP4805SPACER, BOTTOM, CLUTCH1
2KA110130752ELEMENT, FILTER, AIR1 22NB005800BOLT, HEX, 7/16” X 1-1/2”1
3KA110137046PRECLEANER, AIR1 23AMP466500SENSOR, OXYGEN (w/ Sf Snse)1
4KA490657007FILTER, OIL1 23BMP015200PLUG, SENSOR (w/o Sf Snse)1
5KA920702112PLUG, SPARK, NGK, BPR4ES1 24MP365300MUFFLER, CATALYST, VERT.1
6KA110607016GASKET, MUFFLER2 25MP387601BRACKET, MUFFLER1
7NB8130CLAMP, 3/4” ID1 26MP452101BRACKET, SWITCH1
8MP044800ADAPTER, 1/8” NPT1 27MP318400SWITCH, MICRO, 12V1
9AMP028700SWITCH, OIL, SP (w/ Sf Snse)1 28NB9625SCREW, #4 X 3/4”3
9BMP019200SWITCH, OIL, DP (w/o Sf Snse)1 29NB8125CLAMP, 1/4”1
10NB2460HOSE, VACUUM, 5/32”37” 30NB6110WASHER, LOCK, 1/4”1
11NB2460HOSE, VACUUM, 5/32”45” 31NB3350WASHER, FLAT, 1/4”1
12NB2470HOSE, FUEL, 3/8”40” 32NB007000NUT, LOCK, #42
13KA461DA0800WASHER, LOCK, M84 33MP452200SPACER, THROTTLE, #41
14KA922107027NUT, HEX, M84 34NB6012BOLT, HEX, M6 X 201
15NB7282CLAMP, HOSE1 35NB065000BOLT, HEX, M8 X 162
16MP043100SEAL, INTAKE, AIR1 36NB6111WASHER, LOCK, 5/16”2
17MP072300VALVE, DRAIN, OIL1 37NB9267WASHER, FLAT, 5/16”2
18MP4787CLUTCH, ASM.1 38NB049300SCREW, 1/4” X 1/2”1
19MP4790TUBING, NEOPRENE2” 39NB9545NUT, FLANGE, 1/4”1
20MP371700SPACER, 1.02” ID1 40MP452300SPRING, EXTENSION1
