250ST Motor Assembly - Standard RF064000

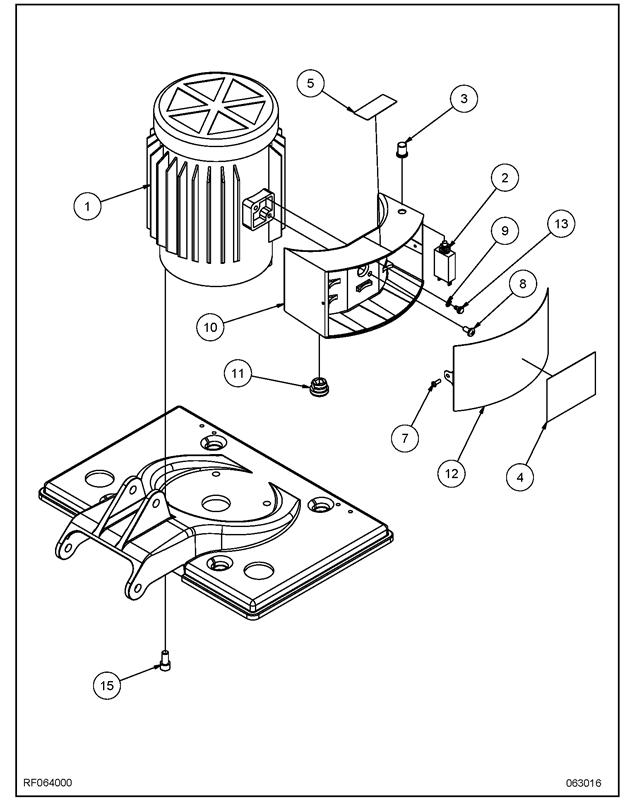

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	QTY	Item	Part Number	Description	QTY
1A	56382831	MOTOR, 1HP, 115V / 60HZ	1	5	77234A	PLATE, WARNING	1
A1	AS018100	STARTER, SWITCH**	1	6	170667	CONNECTOR, TWIST, WIRE	1
A2	41311A	CAPACITOR, RUN**	1	7	962727	SCREW, #8 X 1/2”	2
A3	41312A	CAPACITOR, START**	1	8	962983	SCR 1/4-20 X 5/8 PN ST MACH	2
A4	AS001800	FAN, MOTOR**	1	9	980603	WASHER, #10, LOCK, EXT	1
1B	MP486700	MOTOR, 1HP, 230V, 50HZ	1	10	22906A	ENCLOSURE, MOTOR, START	1
B1	47378A	SWITCH, STARTER, 230V**	1	11	51523A	BUSHING, STRAIN RELIEF, 7/8”	1
B2	41313A	CAPACITOR, RUN, 230V**	1	12	62667A	COVER, ENCLOSURE	1
B3	41314A	CAPACITOR, START, 230V**	1	13	85833A	SCREW, #10 X 3/8”	1
B4	AS001800	FAN, MOTOR**	1	14	47709A	TERMINAL, 1/4, 10-12 Ga**	1
2A	56454538	BREAKER, CIRCUIT, 15A	1	15	86112A	SCREW, 3/8” X 3/4”, SH	4
2B	41418C	CIRCUIT BREAKER, 10A, 230V	1	16	AS017502	BRACKET, MOUNTING, START, SWITCH**	1
3	56459367	BOOT, RESET BUTTON	1	17	85313C	SCREW 6-32 X 3/8 PAN HD**	2
4	77195A	LABEL, UI FIRE & SAND	1	18	9200056	NUT-6X32 ELASTIC STOP**	2
