To purchase parts for the 250ST (Handle Assembly - 115V RF050700):

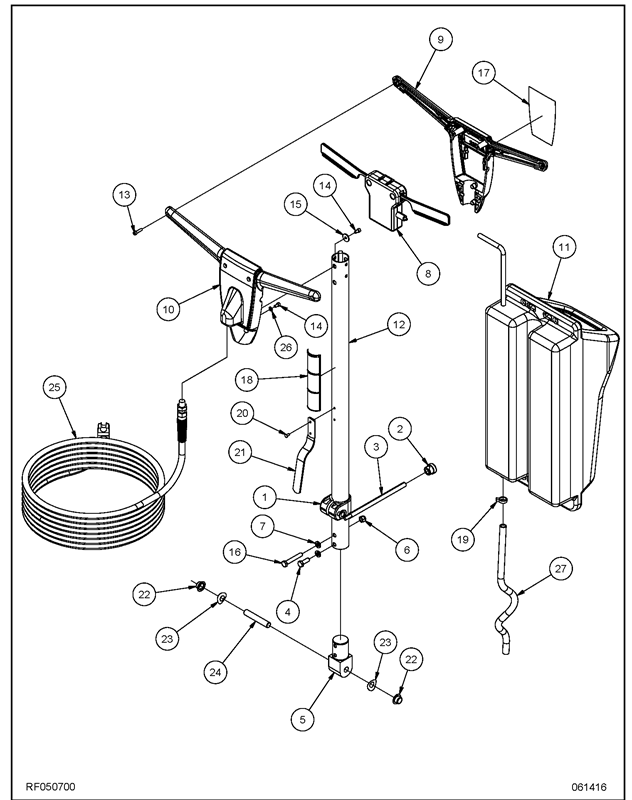

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | Item | Part Number | Description | Qty | |
| 1 | 442001 | CLAMP, TUBE, HANDLE | 1 | 15 | 80291A | WASHER, FLAT, #10 | 1 | |
| 2 | 627561 | RELIEF, STRAIN | 1 | 16 | 85817A | BOLT, HEX, 5/16” X 2” | 1 | |
| 3 | 40522A | INTERCONNECT, CORD | 1 | 17 | MP499300 | DECAL, PE250ST, HANDLE | 1 | |
| 4 | 85812A | BOLT, HEX, 5/16” X 7/8” | 1 | 18 | 71347A | LABEL, WARNING | 1 | |
| 5 | 509240 | TONGUE, TUBE, HANDLE | 1 | 19 | NB6040 | TIE, CABLE, 3/16” X 8-1/2” | 1 | |
| 6 | 920110 | NUT, LOCK, 5/16” | 1 | 20 | 930005 | RIVET, 5/32” | 2 | |
| 7 | 980652 | WASHER, LOCK, 5/16” | 2 | 21 | 64325A | HOOK, CORD | 1 | |
| 8 | 10687A | INTERLOCK, ASM | 1 | 22 | 920346 | PALNUT, TYPE W | 2 | |
| 9 | 21074A | FRONT, HANDLE | 1 | 23 | 80295A | WASHER, BOWED | 2 | |
| 10 | 21075A | REAR, HANDLE | 1 | 24 | 67474A | SHAFT, PIVOT, HANDLE | 1 | |
| 11 | A0001-BLK4 | TANK, 2-1/2 GAL, ASM. | 1 | 25 | MP476300 | CORD, POWER, 14/3 X 50FT | 1 | |
| 12 | 61825A | TUBE, HANDLE | 1 | 26 | 70175A-FR | WASHER, LOCK, #10 | 1 | |
| 13 | 80284A | SCREW, #10 X 3/4” | 6 | 27 | MP178000 | TUBING, VINYL, 1/2” ID | 18” | |
| 14 | 80290A | SCREW, #10 X 3/8” | 2 |
