To purchase parts for the 250ST (Base Assembly RF050800):

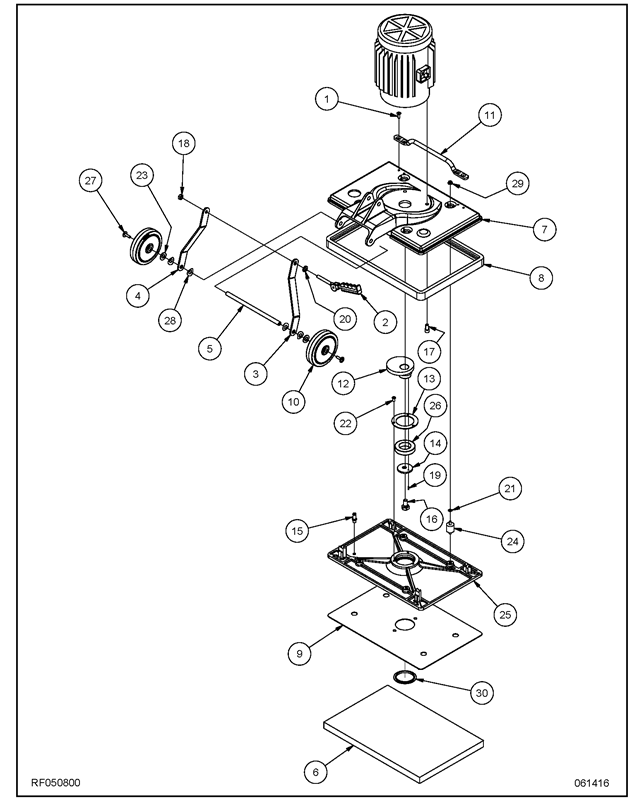

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | Item | Part Number | Description | Qty | |
| 1 | 962411 | SCREW, 1/4” X 3/4”, CS | 4 | 16 | 85718A | SCREW, 1/2” X 3/4”, SH | 1 | |
| 2 | 56109699 | CAM ASM, w/ GRIP | 1 | 17 | 86112A | SCREW, 3/8” X 3/4”, SH | 4 | |
| 3 | 56381766 | LINK-ARM, RIGHT | 1 | 18 | 920248 | NUT, 3/8” | 1 | |
| 4 | 56381767 | LINK-ARM, LEFT | 1 | 19 | 925589 | PIN, ROLL | 1 | |
| 5 | 56381768 | SHAFT, AXLE | 1 | 20 | 980349 | WASHER, WEAR, CAM | 1 | |
| 6 | 56382759 | PAD, RED, 12” X 18” | 1 | 21 | 980614 | WASHER, 1/4”, STAR LOCK | 4 | |
| 7A | 25908A | MAINFRAME | 1 | 22 | 87700A | SCREW, BH, 3/8” X 1/2” | 1 | |
| 7B | 3973A | PLUG, HOLE (NOT SHOWN) | 1 | 23 | 980648 | WASHER, 17/32” X 1-1/16” | 2 | |
| 8 | 31224B | BUMPER, FRAME (BLACK) | 1 | 24 | 10666A | SPRING MOUNT KIT | 1 | |
| 9 | AS009400 | GRIP FACE | 1 | 25 | 29931A | BASE, ORBITAL | 1 | |
| 10 | 39857A | WHEEL, 5” X 1.50” X .50” | 2 | 26 | 50736A | BEARING | 1 | |
| 11 | 54930A | HANDLE, LIFT | 1 | 27 | 80292A | SCREW, 1/4” X 1” | 2 | |
| 12 | 62814A | ECCENTRIC | 1 | 28 | 80295A | WASHER, BOWED | 4 | |
| 13 | 66981A | RETAINER, BEARING | 1 | 29 | 81220A | NUT, SERRATED FLANGE | 4 | |
| 14 | 66982A | RETAINER, ECCENTRIC | 1 | 30 | NB072300 | PLUG, BUTTON, 2.5” | 1 | |
| 15 | MP018900 | FITTING, HB, 1/8” NPT X 3/8” | 1 |
