To purchase parts for the 440BU (Bulkhead Assembly):

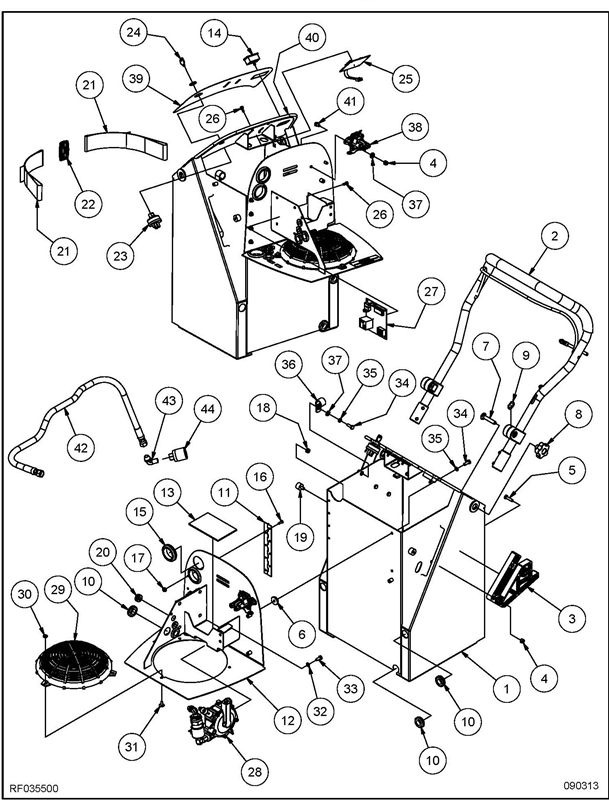

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | QTY | |
| 1 | MP377300 | BULKHEAD, ASM. | 1 | 23 | MP199000 | SWITCH, IGNITION | 1 | |
| 2 | MP375500 | HANDLE, ASM. | 1 | 24 | KC4834001 | KEY, SWITCH, IGNITION | 1 | |
| 3 | MP039300 | PLATE, LOCK, HANDLE | 2 | 25 | MP042800 | BOARD, DISPLAY | 1 | |
| 4 | NB3275 | NUT, LOCK, 1/4” | 8 | 26 | NB012500 | SPACER, BOARD | 8 | |
| 5 | NB6530 | BOLT, HEX, 1/4” X 1” | 6 | 27 | MP161200 | MODULE, SAFESENSE | 1 | |
| 6 | MP373100 | WASHER, RUBBER | 2 | 28 | MP375600 | REGULATOR, ASM. | 1 | |
| 7 | NB010100 | BOLT, CARRIAGE, 3/8” X 2” | 2 | 29 | KA550200900 | GUARD, SCREEN, FS481V | 1 | |
| 8 | RV005100 | KNOB, HANDLE | 2 | 30 | NB9645 | WASHER, FLAT, #10 | 3 | |
| 9 | NB011400 | WASHER, WAVE | 2 | 31 | NB021000 | RIVET, 3/16” | 3 | |
| 10 | NB009900 | GROMMET, 11/16” ID | 5 | 32 | MX1115 | WASHER, STAR, 1/4” | 2 | |
| 11 | MP373600 | HINGE, 7.5” X 1.25” | 1 | 33 | NB003200 | BOLT, HEX, 1/4” X 5/8” | 2 | |
| 12 | MP377200 | TRAY, BATTERY, ASM. | 1 | 34 | NB019100 | BOLT, HEX, 1/4” X 3/4” | 4 | |
| 13 | MP373800 | PAD, BATTERY | 1 | 35 | NB6110 | WASHER, LOCK, 1/4” | 4 | |
| 14 | MP280400 | METER, HOUR / TACH | 1 | 36 | NB8130 | CLAMP, 3/4” | 2 | |
| 15 | NB6514 | GROMMET, 1-1/2” ID | 3 | 37 | NB3350 | WASHER, FLAT, 1/4” | 4 | |
| 16 | NB034100 | SCREW, #10 X 1/2” | 8 | 38 | MP367100 | SOLENOID, STARTER, 12V | 1 | |
| 17 | NB9510 | NUT, FLANGE, #10 | 8 | 39 | MP390400 | DECAL, PANEL, CONTROL | 1 | |
| 18 | NB9845 | NUT, KEPS, 1/4” | 2 | 40 | IN1015 | TRIM, BATTERY TRAY | 24” | |
| 19 | IN3510 | MOUNT, TYPE S, 1/4” | 2 | 41 | NB015700 | BOLT, HEX, 1/4” X 5/8” | 2 | |
| 20 | NB009800 | GROMMET, 3/8” ID | 5 | 42 | MP373300 | HOSE, FUEL, LP, 34”, ASM. | 1 | |
| 21 | MP368100 | STRAP, 2” X 23” | 2 | 43 | MP4330 | FITTING, ELBOW | 1 | |
| 22 | MP367600 | SLIDE, STRAP, 2” | 1 | 44 | MP4500 | COUPLER, REGO | 1 |
