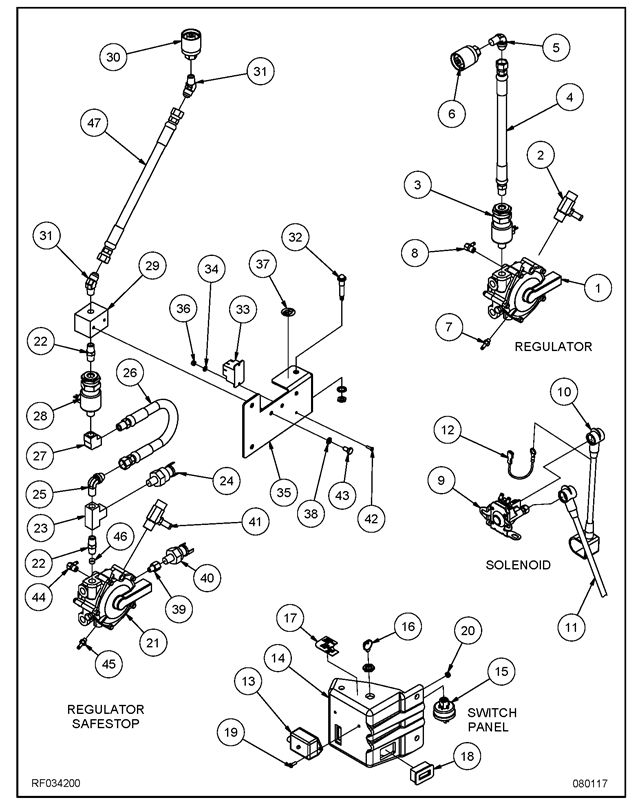

To purchase parts for the 420BU (Regulator, Switch Panel, & Solenoid Assembly RF034200):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | QTY | |
| 1 | SA026300 | REGULATOR, LP | 1 | 25 | MP4330 | FITTING, 49 X 6, REG TO FUELOCK | 1 | |
| 2 | MP017900 | ADJUSTMENT, FUEL, ASM. | 1 | 26 | MP367300 | HOSE, FUEL, LP, 13”, ASM. | 1 | |
| 3 | MP317500 | FUELOCK, ASM. | 1 | 27 | MP4332 | FITTING, 1/4”, BRASS ELBOW, FPT | 1 | |
| 4 | MP367300 | HOSE, FUEL, 13” | 1 | 28 | MP317500 | FUELOCK, 12 VOLT, ASM. | 1 | |
| 5 | MP4330 | FITTING, ELBOW | 1 | 29 | MP509600 | MANIFOLD, SAFE STOP | 1 | |
| 6 | MP4500 | COUPLER, REGO | 1 | 30 | MP4500 | COUPLER, QUICK REGO, FEMALE | 1 | |
| 7 | MP371100 | FITTING, 3/16” HB | 1 | 31 | MP4331 | FITTING, 54 X 6, REG TO FUELOCK | 2 | |
| 8 | MP372400 | FITTING, ELBOW, 1/8” | 1 | 32 | MP492000 | LIGHT, RED, LED, 12V | 1 | |
| 9 | MP367100 | SOLENOID, STARTER | 1 | 33 | MP151500 | RELAY, BOARD, CIRCUIT, PRINTED, 12V | 1 | |
| 10 | MP366700 | CABLE, BATTERY, 9” | 1 | 34 | NB007100 | WASHER, FLAT, #6 | 2 | |
| 11 | MP120900 | CABLE, BATTERY, 14” | 1 | 35 | MP509401 | BRACKET, SAFE-STOP | 1 | |
| 12 | MP354900 | WIRE, SOLENOID | 1 | 36 | NB020800 | NUT, LOCK, NYLON, 6-32 | 2 | |
| 13 | MP402300 | MODULE, ECOSENSE, ASM. | 1 | 37 | MP509700 | DECAL, OVERFILL WARNING | 1 | |
| 14 | MP367400 | PANEL, SWITCH | 1 | 38 | NB6110 | WASHER, LOCK, 1/4” | 2 | |
| 15 | MP199000 | SWITCH, IGNITION | 1 | 39 | MP509900 | FITTING, 1/8” MNPT X 1/4” FNPT | 1 | |
| 16 | KC4834001 | KEY, IGNITION | 1 | 40 | MP509800 | SWITCH, PRESSURE, 6 PSI | 1 | |
| 17 | SS900001 | LABEL, SWITCH | 1 | 41 | MP017900 | ADJUSTMENT, FUEL, ASM. | 1 | |
| 18 | MP280400 | METER, HOUR / TACH | 1 | 42 | NB9515 | SCREW, PAN HD, 6-32 X 1/2 | 2 | |
| 19 | NB007400 | SCREW, #8 X 1/2” | 2 | 43 | NB015700 | SCREW, CAP, HH, 1/4 -20 X 5/8 | 2 | |
| 20 | NB9710 | NUT, #8 | 2 | 44 | MP372400 | FITTING, ELBOW, BRASS | 1 | |
| 21 | SA026300 | REGULATOR, LP | 1 | 45 | MP371100 | FITTING, BRASS, 1/4-28 x 3/16" HB | 1 | |
| 22 | MP4325 | FITTING, 3325 FUELOCK X 4, REG TO FUELOCK | 2 | 46 | MP341500 | SCREEN, INLET, REGULATOR | 1 | |
| 23 | MP509300 | FITTING, TEE,1/4” FNPT | 1 | 47 | MP4340 | HOSE, 12”, REGULATOR | 1 | |
| 24 | MP509200 | SWITCH, PRESSURE, 200 PSI | 1 |
