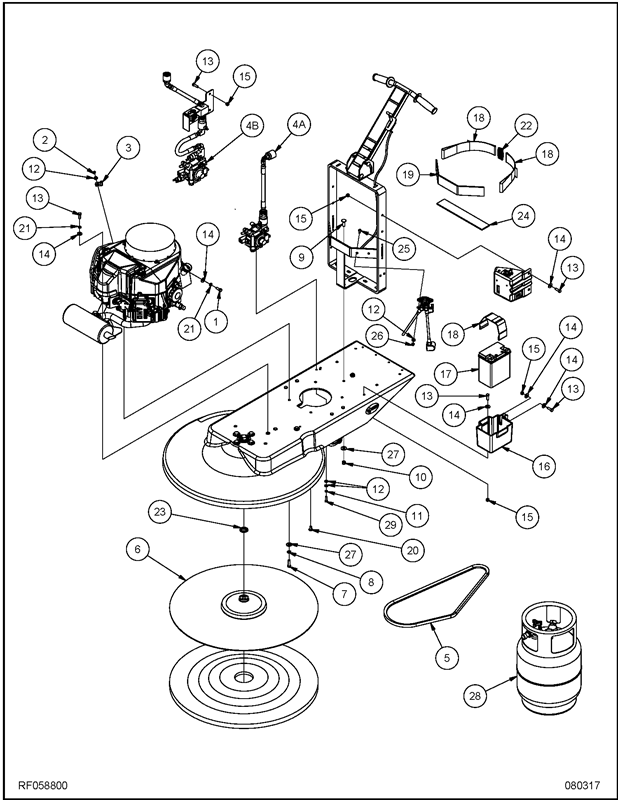

400BU Main Assembly RF058800

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	NB065100	BOLT, HEX, M8 x 25, GD 8.8, ZINC	1	14	NB9267	WASHER, FLAT, 5/16"	8
2	NB064900	SCREW, #10 x 1/2", TRUSS HD, PHIL.	1	15	NB3265	NUT, LOCK, 5/16"-18, NC	4
3	NB8125	CLAMP, 1/4" ID, RETAINER	1	16	MP367500	TRAY, BATTERY, 5-1/4 X 3-1/2	1
4A	MP371800	REGULATOR, STND MDL, ASM.	1	17	MP362200	BATTERY, 12V, 210CCA, AGM	1
4B	MP509500	REGULATOR ASM, SAFE-STOP	1	18	MP368100	STRAP, 2" x 23", OPEN ENDS	3
5A	MP272900	BELT, BX-57 (28")	1	19	MP6600	VELCRO, FELT, BLACK	15"
5B	MP8070	BELT, BX-46 (21")	1	20	NB065800	PLUG, HOLE, 5/16", BLK	1
6A	MP351200	PADHOLDER, 28", ASM.	1	21	NB6111	WASHER, LOCK, 5/16"	3
	MP012700	RETAINER, PAD (NOT PICTURED)	1	22	MP367600	SLIDE, STRAP, 2", BLK	1
6B	MP269400	PADHOLDER, 21", ASM.	1	23	MP195300	SPACER, BEARING, RIGHT	1
	MP012700	RETAINER, PAD (NOT PICTURED)	1	24	MP6600_A	VELCRO, FELT, BLACK	12"
7	NB6044	SCREW, CAP, 3/8 X 1 1/4	3	25	NB019100	BOLT, HEX, 1/4-20 X 3/4, GD 5	2
8	MX1075	WASHER, LOCK, 3/8"	3	26	NB3275	NUT, LOCK, 1/4"	2
9	NB5520	BOLT, CARRIAGE, 3/8"-16 X 1 1/4"	3	27	NB3450	WASHER, FLAT, 3/8"	6
10	NB3267	NUT, LOCK, 3/8", NC	3	28	MP105900	CYLINDER, STEEL, PAINTED, SAFETY FILL	1
11	NB6110	WASHER, LOCK, 1/4"	2	29	NB6530	SCREW, CAP, HH, 1/4-20 X 1	2
12	NB3350	WASHER, FLAT, 1/4"	7	51	MP6600_B	VELCRO, FELT, BLACK	1
13	NB6545	SCREW, CAP, HH, 5/16"-18 X 1"	6	52	MP499500	DECAL, PE400BU	2
