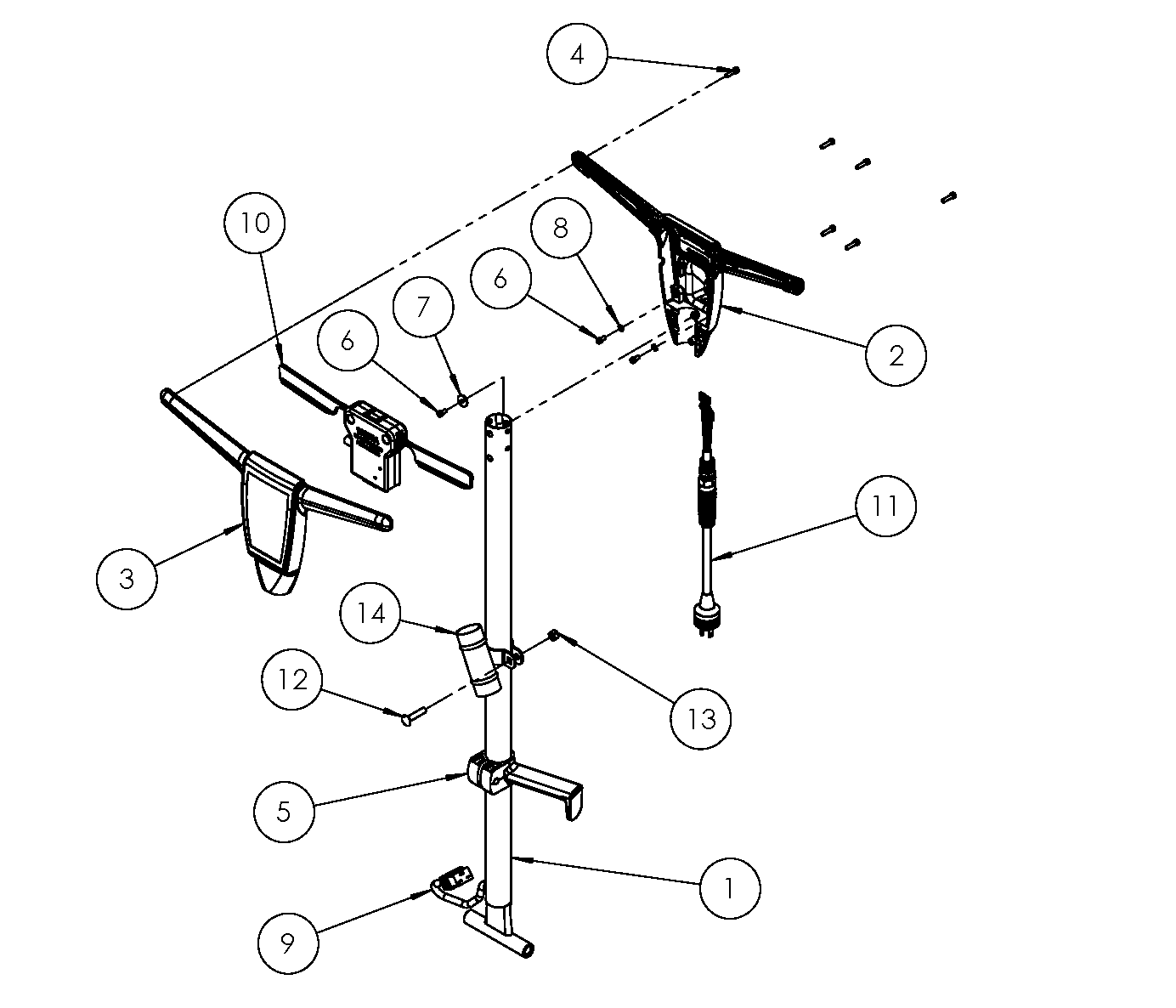

To purchase parts for the 250MFP MGP (Handle Assembly RF099500):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | 61373A | HANDLE TUBE | 1 |
| 2 | 21075A | HANDLE BACK CFP | 1 |
| 3 | 21074A | HANDLE FRONT CFP | 1 |
| 4 | 80284A | SCREW, SHC, #10-32 X 3/4 | 6 |
| 5 | 50781A | CLAMP HANDLE C2K | 1 |
| 6 | 80290A | SCREW, SHC, #10-32 X 3/8 | 3 |
| 7 | 80291A | WASHER, FLAT, #10 | 1 |
| 8 | 980603 | WASHER, LK 10 EXT TOOTH | 2 |
| 9 | 40789A | CORD INTERCONNECT | 1 |
| 10 | 10687A | MODULE INTERLOCK ASM | 1 |
| 11 | 56384398 | CORD ASSEMBLY | 1 |
| 12 | 88643A | BOLT, CARRIAGE, 5/16-18 X 1 1/2 (OPTIONAL) | 1 |
| 13 | 920110 | NUT, NYLOCK, 5/16"-18 (OPTIONAL) | 1 |
| 14 | 10304A | ADAPTOR, DUST COLLECTION (OPTIONAL) | 1 |
