To purchase parts for the 250MFP MGP (Modular Base Assembly RF098000):

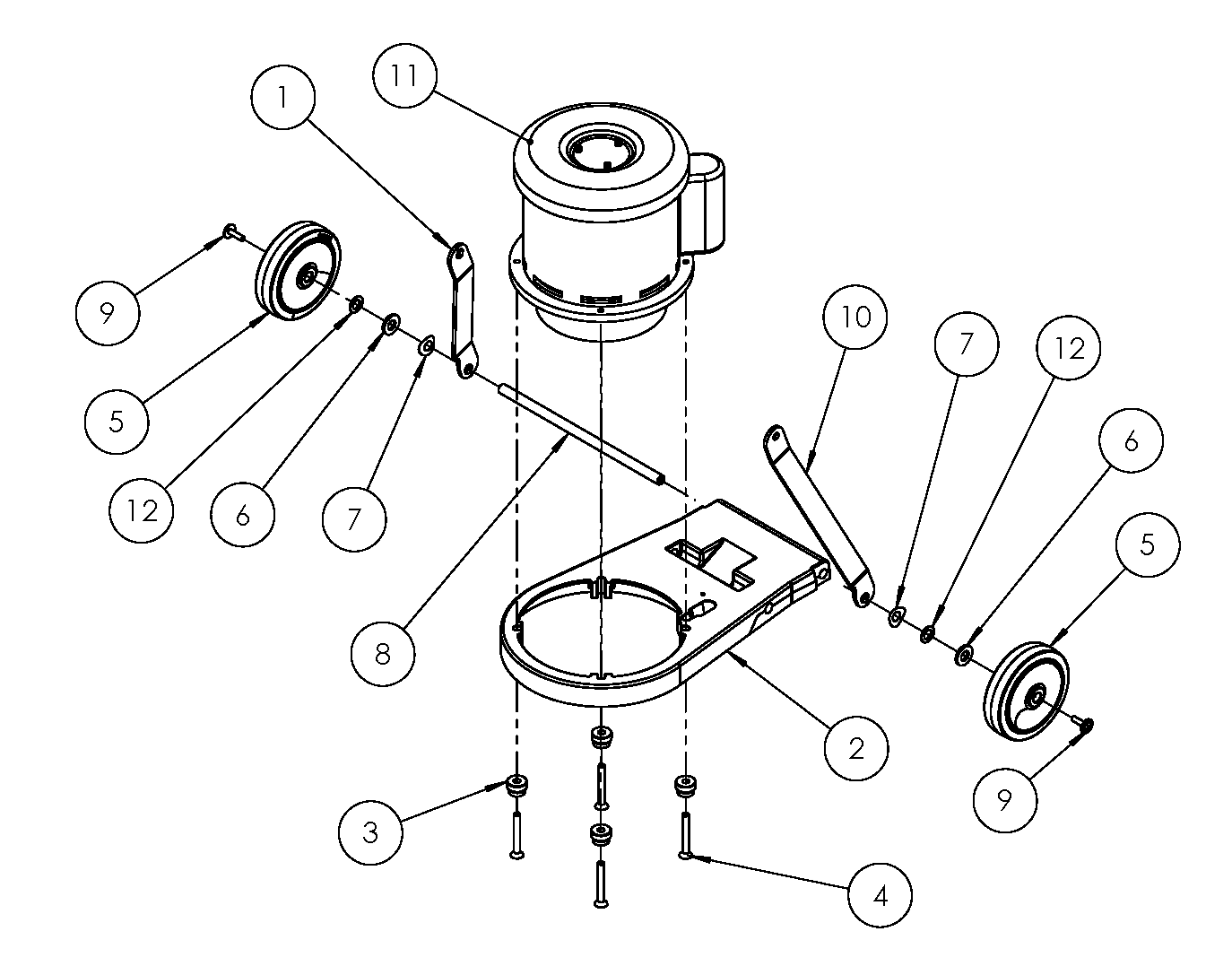

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | 61741A | LINK ARM RIGHT | 1 |
| 2 | 21088A | MAIN FRAME | 1 |
| 3 | AS127100 | LUG, MOUNTING, MODULAR | 4 |
| 4 | NB086800 | SCREW, SHF, 5/16 X 2.5 | 4 |
| 5 | 39857A | WHEEL 5 POLISHER | 2 |
| 6 | 980648 | WASH-17/32 ID X 1&1/16 OD PLN | 2 |
| 7 | 80295A | WASHER BOWED .516ID X 1.06OD | 2 |
| 8 | 61725A | AXLE .50 X 11.34 | 1 |
| 9 | 80292A | SCREW, BHHR SEMS, 1/4-20 X 1 | 2 |
| 10 | 61740A | LINK ARM LEFT | 1 |
| 11 | 53650A | MOTOR/GEARBOX 1.5HP 120/60 | 1 |
| 12 | 980673 | WASHER FLT 1/2 ID X 7/8 OD | 2 |
