To purchase parts for the 225FP (Main Assembly RF050600):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

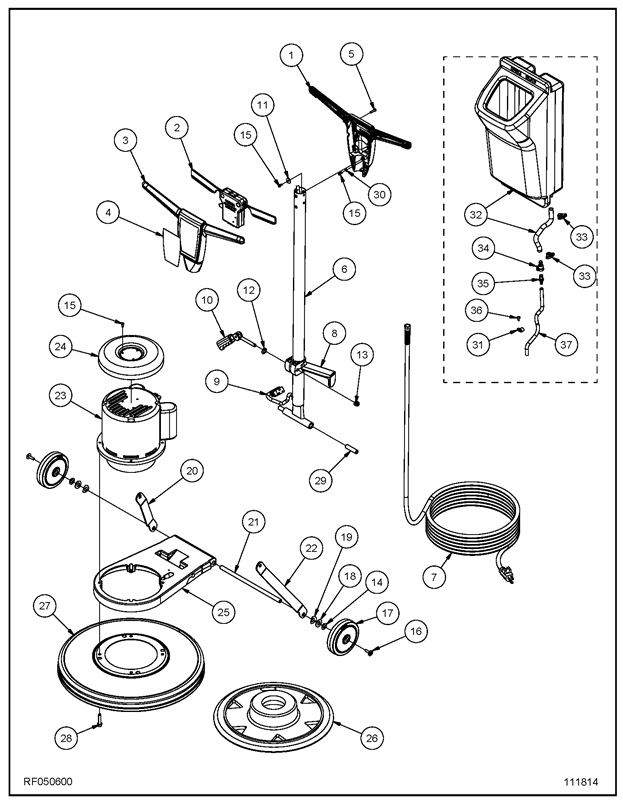

PE225FP_Main Assembly_RF050600 Diagram

ItemPart NumberDescriptionQTY ItemPart NumberDescriptionQTY
121075ABACK, HANDLE1 23B53652AMOTOR, GEARBOX (230V)1
210687AMODULE, INTERLOCK1 23CAS001900MOTOR, GEARBOX, 120V, 2SPD1
321074AFRONT, HANDLE1 2461716ACOVER, DRIP, MOTOR1
4MP499200DECAL, PE225FP, HANDLE1 2521088AFRAME, MAIN1
580284ASCREW, #10 X 3/4”6 26AMP481100DRIVER, PAD, 16”1
661373ATUBE, HANDLE1 26BMP478400DRIVER, PAD, 19”1
7AMP476300CORD, POWER, 14/3 X 50FT1 27A11006ASHROUD, 17”, ASM.1
7B486500CORD, POWER, TYPE I, 50FT1 -61715ASHROUD, 17”1
850781ACLAMP, HANDLE1 -30381ABUMPER, 17”1
940789ACORD, INTERCONNECT1 27BMP478000SHROUD, 20”, ASM.1
1056109699CAM, w/ GRIP, ASM.1 -MP473200SHROUD, 20”1
1180291AWASHER, FLAT, #101 -MP478100BUMPER, 20”1
12980349WASHER, WEAR1 2880294ASCREW, SH, 5/16” X 1-5/8”4
13920342NUT, HEX, 3/8”1 2953833APIN, 1/2” X 2”2
14980673WASHER, FLAT, 1/2”2 30980603WASHER, EXT TOOTH, #102
1580290ASCREW, #10 X 3/8”6 31NB021600CLAMP, 3/8”1
1680292ASCREW, 1/4” X 1”2 32A0001-BLK4TANK, 2-1/2 GAL, ASM.1
1739857AWHEEL, 5”2 33NB6035TIE, CABLE, 1/8” X 4”, BLK2
18980648WASHER, 17/32” X 1-1/16”2 34MP473700COUPLING, FEMALE, 3/8”1
1980295AWASHER, BOWED2 35MP473800COUPLING, MALE, 1/4”1
2061741AARM, LINK, RIGHT1 36NB064900SCREW, #10 X 1/2”1
2161725AAXLE1 37MP473900TUBING, PVC, 1/4” ID12”
2261740AARM, LINK, LEFT1 38MP498300DECAL, APEC, 3” (ON MOTOR) (NOT SHOWN)1
23A53650AMOTOR, GEARBOX (120V)1
