HydraShine Driver Assembly

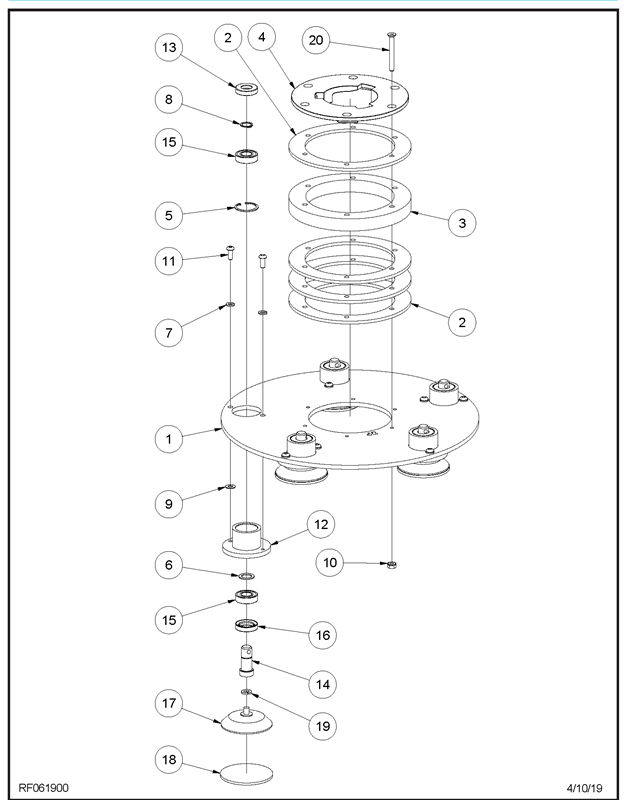

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	QTY	Item	Part Number	Description	QTY
1	MP497500	PLATE, DRIVER, 15", POLISHING	1	11	962822	SCR 1/4-20 X 5/8 BT ST SOC	10
2	AS004700	RING, SPACER	4	12	MP497600	HOUSING, BEARING, POLISHING HEAD	5
3	AS004800	RING, ISOLATOR	1	13	MP497300	SEAL, SHAFT, RADIAL, 15 X 32 X 7	5
4	AS004600	PLATE, CLUTCH, DRIVER	1	14	MP497700	SHAFT, POLISING HEAD	5
5	747304	RING RETAIN ARM BRG 37	5	15	56380282	BEARING-BALL 6002 CUSTOM	10
6	61355A	SPACERCASTER WHEEL AM 8&12	5	16	MP497400	SEAL, SHAFT, RADIAL, 20 X 32 X 7	5
7	NB6110	WASHER, LOCK, 1/4"	10	17	MP497201	PAD, BACKUP, 3"	5
8	NB070200	RING, RETAINING, EXT	5	18	MP498100	PAD, BACKER, FOAM, 3"	5
9	NB071400	WASHER, GROUND, 1/4"	5	19	NB6111	WASHER, LOCK, 5/16"	5
10	NB9845	NUT, KEPS, 1/4-20	6	20	NB074900	SCREW, FHSCS, 1/4-20 X 2 1/4	6
