To purchase parts for the 450GP (Regulator & Handle Assembly RF040300):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

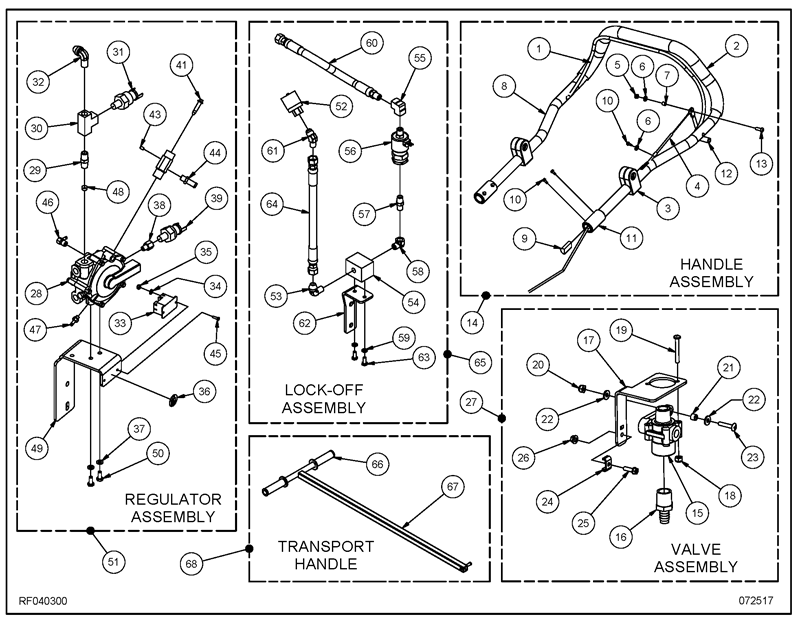

PE450GP_Regulator and Handle Assembly RF040300

ItemPart NumberDescriptionQTY  ItemPart NumberDescriptionQTY
1MP042000BAIL, PAINTED1 35NB020800NUT, LOCK, NYLON, 6-322
2MP038600GRIP, HANDLE, BLACK, 1" I.D., 25" LENGTH1 36MP509700DECAL, PROPANE TANK OVERFILL WARNING1
3MP042100BLOCK, SLIDE, HANDLE, PIVOT2 37NB6110WASHER, LOCK, 1/4"2
4MP106500CABLE, THROTTLE, CONTROL1 38MP509800FITTING, 1/8" MNPT X 1/4" FNPT1
5NB9735NUT, LOCK, 10-24, NYLON1 39MP509800SWITCH, PRESSURE, 6 PSI1
6NB9645WASHER, FLAT, #102 40MP017900FUEL, ADJUSTMENT, ASSEMBLY1
7NB028300BUSHING, CABLE, BAIL1 41MP017300SCREW, ADJUSTING, FUEL1
8MP389101HANDLE, BULKHEAD, ADJ., 12GA1 42MP015100FITTING, FUEL ADJUSTMENT1
9MP400400BLOCK, GUIDE, CABLE, THROTTLE, HD1 43NB005200SCREW, SET, 10-24 X 5/16, NYLON TIP1
10NB4382SCREW, DRILL KWIK, 8 x 1/25 44MP018900HOSE, BARB, 1/8 NPT, 3/8 HOSE CONNECT1
11MP045600SLEEVE, STOP, HANDLE2 45NB9515SCREW, PAN HD, 6-32 X 1/22
12MP049800TUBE, VINYL, 3/8" O.D. X 1/4" I.D.1 46MP372400FITTING, ELBOW, BRASS, 1/8" NPT x 3/16" HB1
13NB049000SCREW, BH, 1/4-20 X 3/4, SS1 47MP371100FITTING, BRASS, 1/4-28 x 3/16" HB1
14MP400300HANDLE, ASM., HD1 48MP341500SCREEN, INLET, REGULATOR1
15MP416900VALVE, TWO-WAY, GRINDER1 49MP518001BRACKET, REG. SAFE STOP, 450GP1
16MP164100FITTING, ADAPTER, PE, 1/2 HB X 1/2" MNPT1 50NB003200BOLT, HEX, 1/4-20 X 5/82
17MP146100BRACKET, VALVE, EXTENDED1 51MP519000REGULATOR ASSEMBLY1
18NB030700NUT, LOCK, 10-24, NYLON2 52MP4500COUPLER, QUICK REGO, FEMALE1
19NB027500SCREW, #10-24 x 1-1/2", SS2 53MP4330FITTING, 49 X 6, REG TO FUELOCK1
20NB9735NUT, LOCK, 10-24, NYLON1 54MP509600MANIFOLD, SAFE STOP1
21NB039000BUSHING, PIVOT, VALVE, NYLON1 55MP4332FITTING, 1/4", BRASS ELBOW, FPT1
22NB9645WASHER, FLAT, #102 56MP317500FUELOCK, 12 VOLT, ASM.1
23NB5350SCREW, MACHINE, TH, 10-24 X 1"1 57MP4325FITTING, 3325 X 4, REG TO FUELOCK1
24KA921707001CLAMP1 58MP027200FITTING, 90DEG.ELBOW, 1/4 X 1/4 NPT1
25KA921502182BOLT1 59NB6110WASHER, LOCK, 1/4"2
26NIG5055NUT, FLANGE 5MM1 60MP367300HOSE, FUEL, LP, 13", ASM.1
27MP300800VALVE, ASM.1 61MP4331FITTING, 54 X 6, REG TO FUELOCK1
28SA026300REGULATOR, LP1 62MP518201BRACKET, FUEL-LOCK, 450GP1
29MP4325FITTING, 3325 X 4, REG TO FUELOCK1 63NB003200BOLT, HEX, 1/4-20 X 5/82
30MP509300FITTING, TEE, 1/4" FNPT1 64MP4340HOSE, 12", REGULATOR1
31MP509200SWITCH, PRESSURE, 200 PSI1 65MP519300LOCK-OFF ASSEMBLY1
32MP4330FITTING, 49 X 6, REG TO FUELOCK1 66MP237400GRIP, HANDLE2
33MP151500RELAY, BOARD, CIRCUIT, PRINTED, 12V1 67MG003500HANDLE, TRANSPORT, WELD.1
34NB007100WASHER, FLAT, #62 68MG003400HANDLE, TRANSPORT, ASM.1
