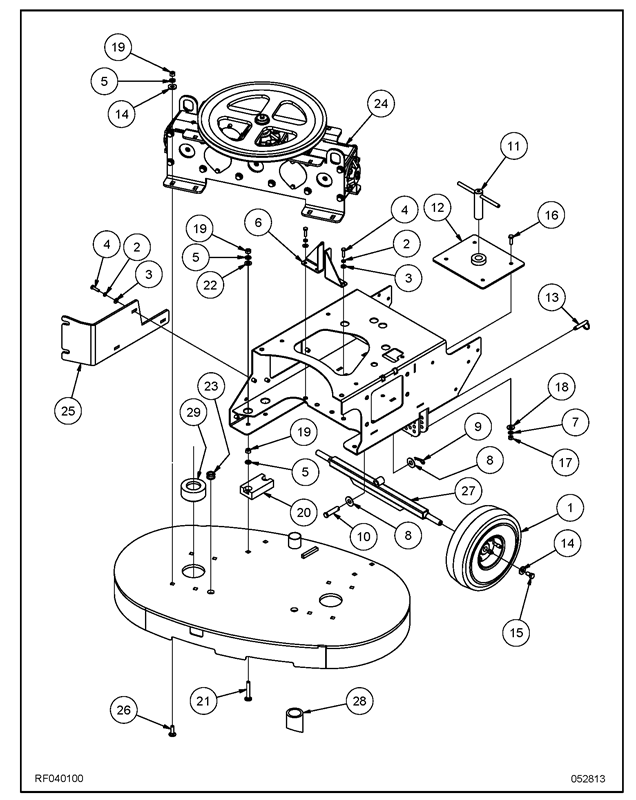

To purchase parts for the 450GP (Frame Assembly RF040100):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | QTY | |
| 1 | MP294300 | WHEEL, 10" | 2 | 16 | NB6545 | BOLT, HEX, 5/16” X 1” | 4 | |
| 2 | NB6110 | WASHER, LOCK, 1/4” | 7 | 17 | NB3260 | NUT, HEX, 5/16” | 4 | |
| 3 | NB3350 | WASHER, FLAT, 1/4” | 7 | 18 | NB9267 | WASHER, FLAT, 5/16” | 4 | |
| 4 | NB6530 | BOLT, HEX, 1/4” X 1” | 7 | 19 | NB046200 | NUT, HEX, 3/8” | 16 | |
| 5 | MX1075 | WASHER, LOCK, 3/8” | 16 | 20 | MP405401 | BLOCK, SPACER, DECK | 2 | |
| 6 | MP295501 | BRACKET, RETAINER | 2 | 21 | NB053600 | BOLT, CARRIAGE, 3/8” X 2-1/2” | 4 | |
| 7 | NB6111 | WASHER, LOCK, 5/16” | 4 | 22 | MX1080 | WASHER, FLAT, 3/8” | 4 | |
| 8 | NB034600 | WASHER, FLAT, 1/2” | 2 | 23 | NB6525 | GROMMET, 1/2” ID | 2 | |
| 9 | NB8175 | PIN, 3/32” | 1 | 24 | MP455400 | GEARBOX, 34”, ASM. | 1 | |
| 10 | NB033800 | PIN, CLEVIS, 1/2” X 2” | 1 | 25 | MP401501 | BRACKET, BRACE, DECK | 1 | |
| 11 | MP297600 | ADJUST, AXLE, ASM. | 1 | 26 | NB5520 | BOLT, CARRIAGE, 3/8” X 1-1/4” | 8 | |
| 12 | MP281100 | PLATE, HUB | 1 | 27 | MP406400 | AXLE | 1 | |
| 13 | NB035800 | PIN, PULL, 3/8” X 1-1/2” | 2 | 28 | MP401000 | TUBE, VACUUM | 1 | |
| 14 | NB3450 | WASHER, FLAT, 3/8” | 10 | 29 | MP403601 | SPACER, SUPPORT, G.BOX | 2 | |
| 15 | NB6851 | BOLT, HEX, 3/8” X 3/4” | 2 |
