To purchase parts for the 450GP (Bulkhead & Control Panel Assembly RF040200):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

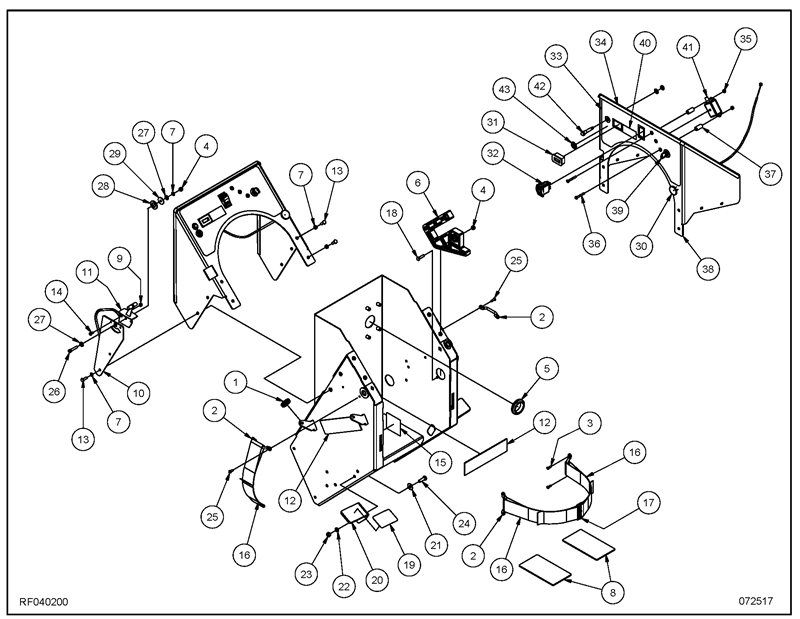

PE450GP_Bulkhead and Control Panel Assembly RF040200

ItemPart NumberDescription QTY  Item Part NumberDescription QTY
1NB009900GROMMET, 11/16”1 23NB3260NUT, HEX, 5/16”4
2RV009500LOOP, FOOTMAN4 24NB6545BOLT, HEX, 5/16” X 1”4
3NB010400SCREW, #10 X 5/8”4 25NB008900RIVET, 3/16”4
4NB3275NUT, LOCK, 1/4”7 26NB064100BOLT, HEX, 1/4” X 1-1/4”1
5NB6514GROMMET, 1-1/2” ID2 27NB3350WASHER, FLAT, 1/4”2
6MP039300PLATE, LOCK, HANDLE2 28NB060900WASHER, FLAT, M161
7NB6110WASHER, LOCK, 1/4”9 29NB035000WASHER, FENDER, 1/4” X 1”1
8MP120700PAD, BATTERY2 30MP290400CABLE, CONTROL1
9NB9735NUT, LOCK, #102 31MP280400METER, HOUR / TACH1
10MP295301BRACKET, THROTTLE1 32MP180000SWITCH, ROCKER1
11MP402600CABLE, THROTTLE1 33MP496400DECAL, DASH1
12MP6600FELT, BLACK(3) 8” 34IN1015TRIM4 FT
13NB019100BOLT, HEX, 1/4” X 3/4”8 35NB9735NUT, LOCK, #102
14NB034100SCREW, #10 X 1/2”2 36NB027500SCREW, #10 X 1-1/2”2
15MP354500DECAL, CAUTION1 37NB008600SPACER, .50” OD X .25” ID2
16MP368100STRAP, 2” X 23”3 38MP408301PANEL, CONTROL1
17MP367600SLIDE, STRAP, 2”1 39AMP199000SWITCH, IGNITION1
18NB6530BOLT, HEX, 1/4” X 1”6 39BKC4834001KEY (REPLACEMENT)1
19MP210400TREAD, PEDAL2 40MP496400DECAL, PANEL, CONTROL1
20MP410701PEDAL, FOOT2 41MP402300MODULE, EMISSION, ASM.1
21NB9267WASHER, FLAT, 5/16”4 42MP492000LIGHT, RED, LED1
22NB6111WASHER, LOCK, 5/16”4 43MP509700DECAL, PROPANE TANK OVERFILL1
