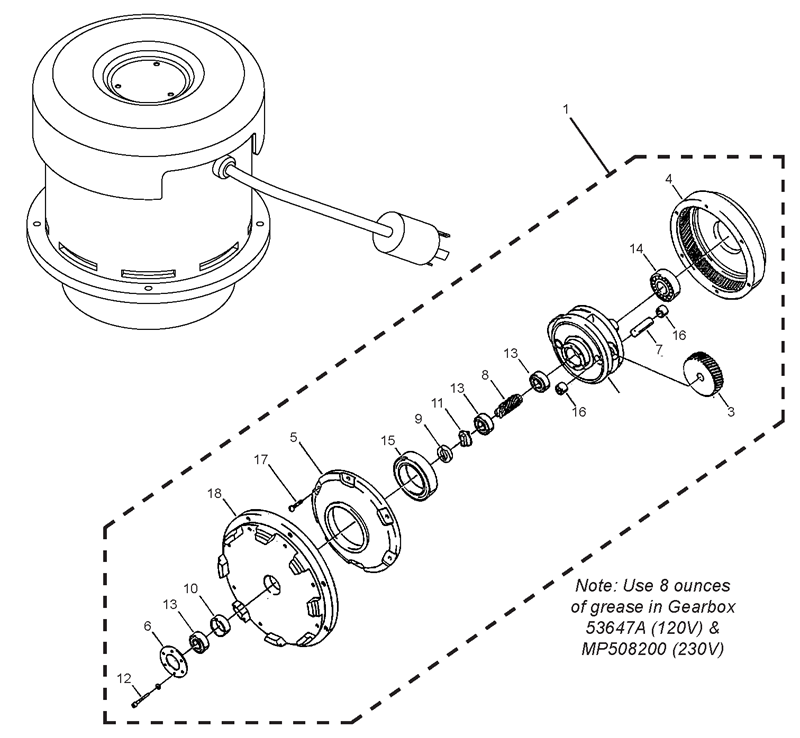

| Item | Part Number | Description | QTY | | Item | Part Number | Description | QTY |
| 1 | 53647A | GEARBOX (120V) | 1 | | 14 | 902654 | BEARING, BALL 6204 | 1 |
| | MP508200 | MOTOR W/ GEARBOX (230V) | 1 | | 15 | 902736 | BEARING, BALL 6010 | 1 |
| 2 | 503802 | GREASE, 14oz TUBE (NOT SHOWN) | 1 | | 16 | 902737 | BEARING, NEEDLE | 6 |
| 3 | 54408A | GEAR, PLANET | 3 | | 17 | 84808A | SCREW, #10 X 3/4” | 6 |
| 4 | 54856A | GEAR, RING | 1 | | 18 | MP487800 | FLANGE, MOUNTING, GEARBOX | 1 |
| 5 | 54858A | COVER, GEARBOX | 1 | | REPLACEMENT MOTOR PARTS |
| 6 | 56922A | RETAINER, BEARING | 1 | | 19 | MP487900 | BRUSH, CARBON, ASM. (NOT SHOWN) | 4 |
| 7 | 58312A | SHAFT, PLANET | 1 | | 20 | MP488000 | RECTIFIER, MOTOR (NOT SHOWN) | 1 |
| 8 | 58313A | GEAR, PINION | 1 | | 21 | MP488100 | CONTROL, SPEED, ASM. (NOT SHOWN) | 1 |
| 9 | 58314A | RETAINER, SHAFT | 1 | | 22 | MP488200 | COVER, DRIP (NOT SHOWN) | 1 |
| 10 | 58520A | SPACER, SLEEVE | 1 | | 23 | MP488300 | CORDSET, 4-WIRE (NOT SHOWN) | 1 |
| 11 | 69195A | COUPLING, SHAFT | 1 | | 24 | MP488400 | BEARING, TOP (NOT SHOWN) | 1 |
| 12 | 80141A | SCREW, #10 X 1” | 6 | | 25 | MP488500 | BEARING, BOTTOM (NOT SHOWN) | 1 |
| 13 | 902606 | BEARING, BALL 6002 | 3 | | | | | |
