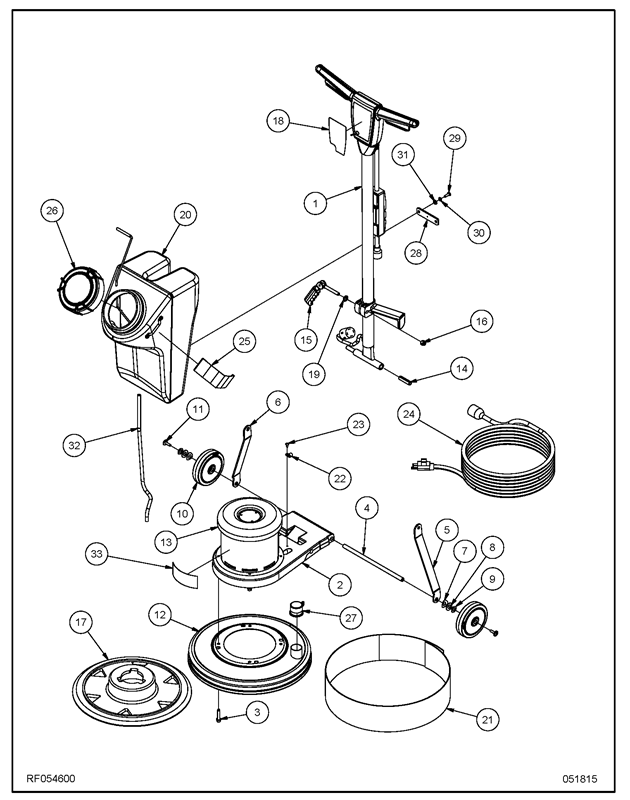

To purchase parts for the 225GP (Main Assembly RF054600):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | Qty | |
| 1 | MP484400 | HANDLE, 2-SPEED, ASM. | 1 | 18 | MP484800 | DECAL, HANDLE, 225GP | 1 | |
| 2 | 21088A | FRAME, MAIN | 1 | 19 | 980349 | WASHER, WEAR | 1 | |
| 3 | 80294A | SCREW, SH, 5/16” X 1-5/8” | 4 | 20 | MP484900 | TANK, WATER, 2-1/2 GAL, ASM. | 1 | |
| 4 | 61725A | AXLE | 1 | 21 | 56383098 | SKIRT, TALL | 1 | |
| 5 | 61740A | ARM, LINK, LEFT | 1 | 22 | NB021600 | CLAMP, 3/8” | 1 | |
| 6 | 61741A | ARM, LINK, RIGHT | 1 | 23 | NB064900 | SCREW, #10 X 1/2” | 1 | |
| 7 | 80295A | WASHER, BOWED, .516” ID | 2 | 24 | 40722A | CORD, POWER, 12/3, 40FT | 1 | |
| 8 | 980648 | WASHER, 17/32” ID | 2 | 25 | MP368100 | STRAP, 2” X 23” | 1 | |
| 9 | 980673 | WASHER, FLAT, 1/2” | 2 | 26 | MP487700 | CAP, 6”, TANK | 1 | |
| 10 | 39857A | WHEEL, 5” | 2 | 27 | MP484000 | CAP, 1.50”, TETHERED | 1 | |
| 11 | 80292A | SCREW, 1/4” X 1.00” | 2 | 28 | MP486401 | PLATE, MOUNTING | 2 | |
| 12 | 56381944 | SHROUD, w/ BUMPER, ASM. | 1 | 29 | NB019100 | BOLT, HEX, 1/4” X 3/4” | 4 | |
| 13 | MP483700 | MOTOR, 1.5HP, 2-SPEED | 1 | 30 | NB6110 | WASHER, LOCK, 1/4” | 4 | |
| 14 | 53833A | PIN, SPLIT, 1/2” | 2 | 31 | NB3350 | WASHER, FLAT, 1/4” | 4 | |
| 15 | 56109699 | CAM, w/ GRIP, ASM. | 1 | 32 | MP473900 | TUBING, 1/4” ID | 24” | |
| 16 | 920342 | NUT, LOCK, 3/8” | 1 | 33 | MP498300 | DECAL, APEC, 2” | 1 | |
| 17 | MP481100 | DRIVER, PAD | 1 |
