350BU Electrical Components RF086400

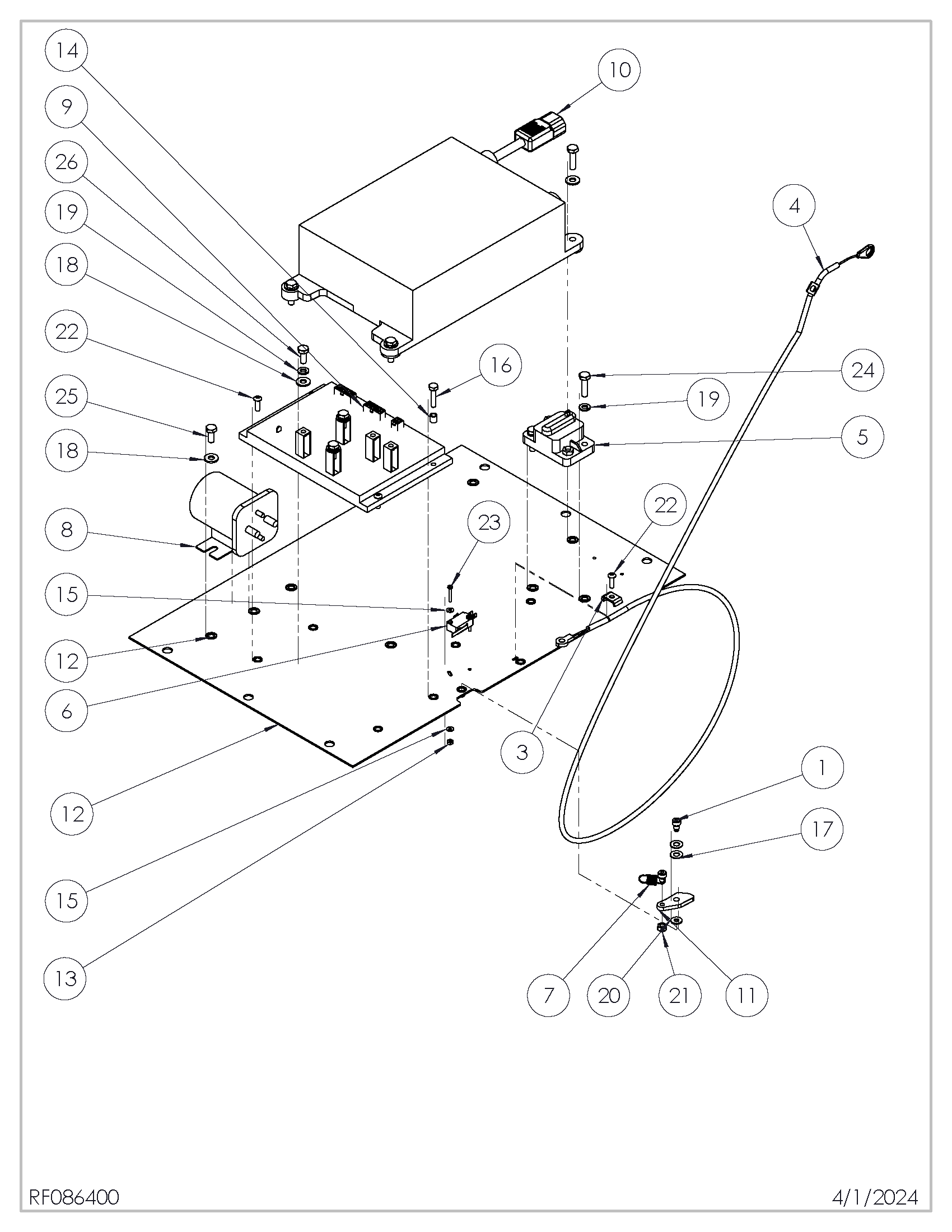

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM NO.	PART NUMBER	DESCRIPTION	QTY.
1	80018A	SCREW, SHLDR, 1/4X1/4, #10-24	2
2	MP071800	TENSIONER, BELT, W/4" PULLEY	1
3	MP098700	CLAMP, CABLE	1
4	MP106500	CABLE, THROTTLE CONTROL	1
5	MP228800	BREAKER, CIRCUIT, 100A, 48V	1
6	MP318400	SWITCH, MICRO, 12V, 15A, 1" LEVER	1
7	MP452300	SPRING, EXT., .44OD X 1.13L	1
8	MP544000	RELAY 48V, 200A	1
9	MP544800	CONTROLLER, 48V, 350A	1
10	MP544901	CHARGER, 48V LI BATTERY	1
11	MP546500	PLATE, SWITCH ACTIVATION LEVER	1
12	MP546901	MOUNT, ELECTRONICS, ASSY, PP	1
13	NB007000	NUT, NYLOCK, #4-40	2
14	NB028300	BUSHING, CABLE, BAIL	1
15	NB048300	WASHER, FLAT, #4	4
16	NB063300		1
17	NB071400	WASHER, GROUND, 1/4"	2
18	NB3350	WASHER, FLAT, SAE, 1/4", ZN	9
19	NB6110	WASHER, LOCK, 1/4	5
20	NB9645	WASHER, FLAT, SAE, #10	1
21	NB9735	NUT, NYLOK, #10-24	1
22	NB020500	SCREW, BH, #10-24 X 5/8	4
23	NB9625	SCREW, PAN, PH, #4-40 X 3/4, ZN	2
24	85700A	BOLT, HEX, 1/4-20, ZN	6
25	NB003200		2
26	NB050300	BOLT, HEX, 1/4-28 X 5/8, ZN	3
