To purchase parts for the 300BU (Main Bottom Assembly - Traction RF044400):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

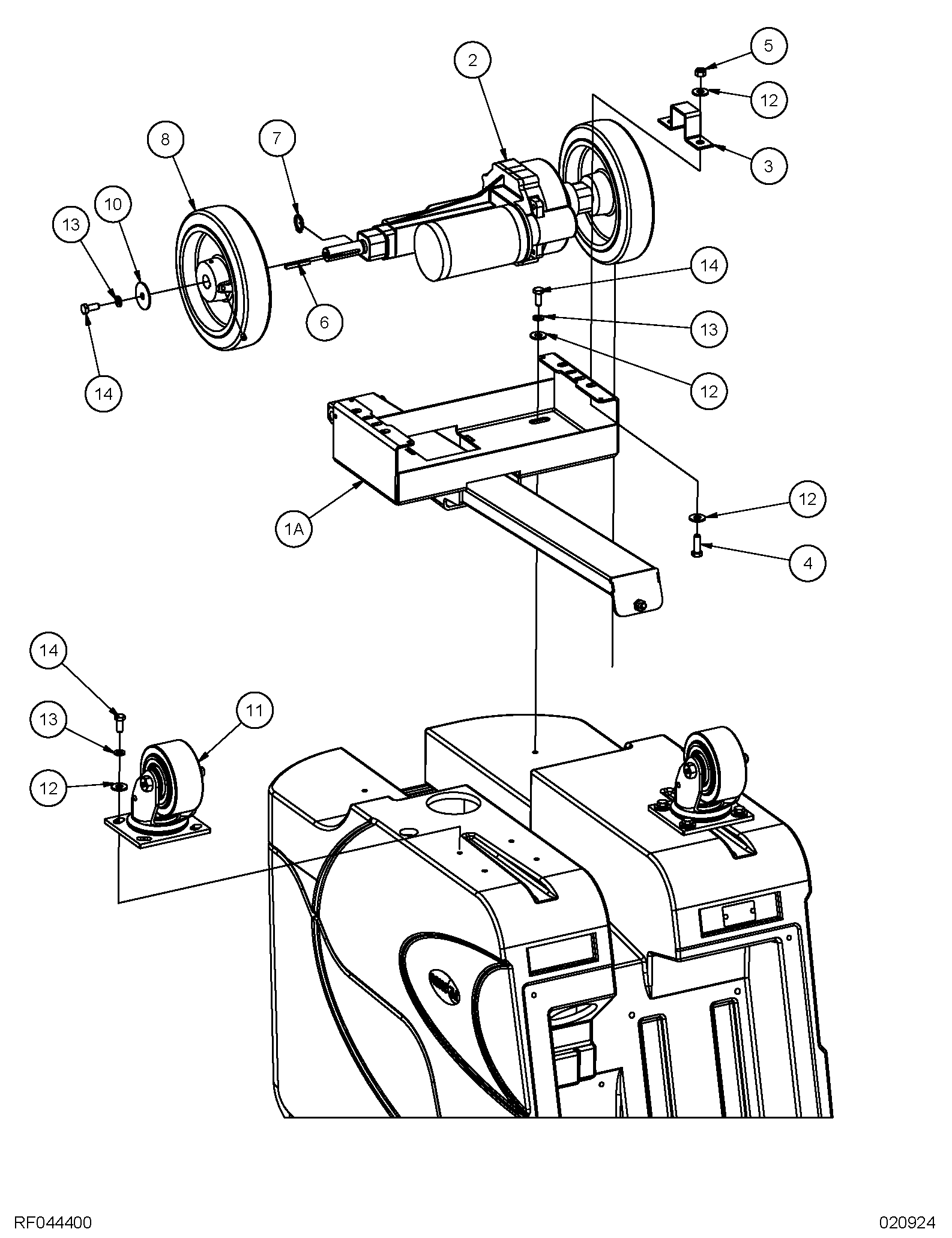

PE300BU_Main Bottom Assembly RF044400 1

ItemPart NumberDescriptionQty
1AMP424400BRACKET, AXLE, ASM. (20”)1
1BMP440800BRACKET, AXLE, ASM. (24”)1
1CMP526100BU27/28 SUSPENSION ASM. [27”/28”]1
2MP424500TRANSAXLE, 36V, ASM.1
3PG001801BRACKET, TRANSAXLE2
4NB6545BOLT, HEX, 5/16” X 1”4
5NB3265NUT, LOCK, 5/16”4
6BA003300KEY, 3/16” X 1-1/2”2
7NB018500RING, RETAINING, 3/4”2
8MP409800WHEEL, 8” X 2”2
9NB9302SCREW, SET, 1/4” X 3/8”4
10NB9505WASHER, FLAT, 5/16” X 1-1/2”2
11MP432500CASTER, 4”, w/ BRAKE2
12NB9267WASHER, FLAT, 5/16”20
13NB6111WASHER, LOCK, 5/16”14
14NB9745BOLT, HEX, 5/16” X 3/4”14
