To purchase parts for the 250AP (Lower Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

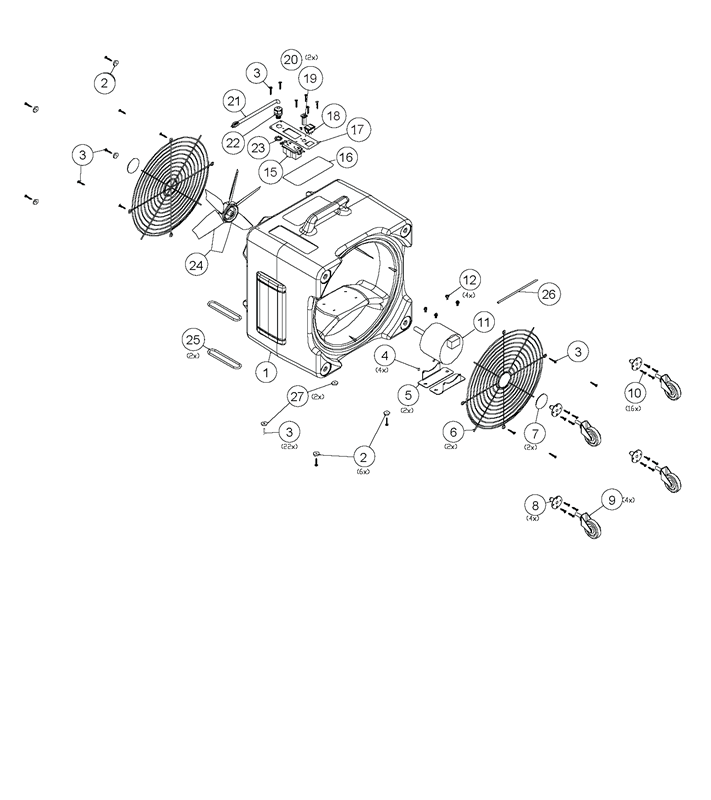

250AP Air Purifier_Lower Assembly Diagram

ItemPart NumberDescriptionQty ItemPart NumberDescriptionQty
1X9180Housing, Axial Fan1 16X9190Label, Product1
2PD3CFoot, Black Rubber, Short1 1772721ASwitch Panel1
3X9098Screw, #10 x 1”, A point, Pan Head1  72721CPanel, Switch C13 Outlet Cutout, (MP541900)
4X8260Nut, 8-32 Lock, w/ Nylon Inserts1 18X9048Rocker Switch1
572719ABracket, Axial Fan Motor1 19X9186Circuit Breaker, 12A1
6X9183Grill Axial Fan1  X9262Circuit Breaker, 5A, (MP541900)1
7X9189Label, Round (at grill)1 20X9188Screw, 6-32 x 3/8”, Black MS1
8X9195Caster Receiver1 21X892620’ HD, 3-wire cord, 16/3 SJTW, 115 volts1
9P50Wheel and Socket1  X2401Cord, Pigtail, 2’ with C20, (MP541900)1
1072020AScrew, Self-Tap, PHMS, Zinc, #12 x 1”1 22PD8Strain Relief, 1/2” NPT1
11X9181-120Motor, 115 VAC, .25 HP, 4-Pole1 23X8008NNut, Lock, 1/2” Steel Conduit1
 X9191-230Motor 230V .25 HP 4-Pole, (MP541900)1 24X9182-6Fan Blade Assembly1
12X8209SScrew, 1/4-20 x 1/2”, Self Locking Flange1 25F631Round Belt1
15X9187GFCI Outlet Female1 2672470AHeat Shrink, Blk, 1/2” x 200’,1
 X2400IEC plug 230V, (MP541900)1 27PD3BFoot, Black Rubber, Tall1
