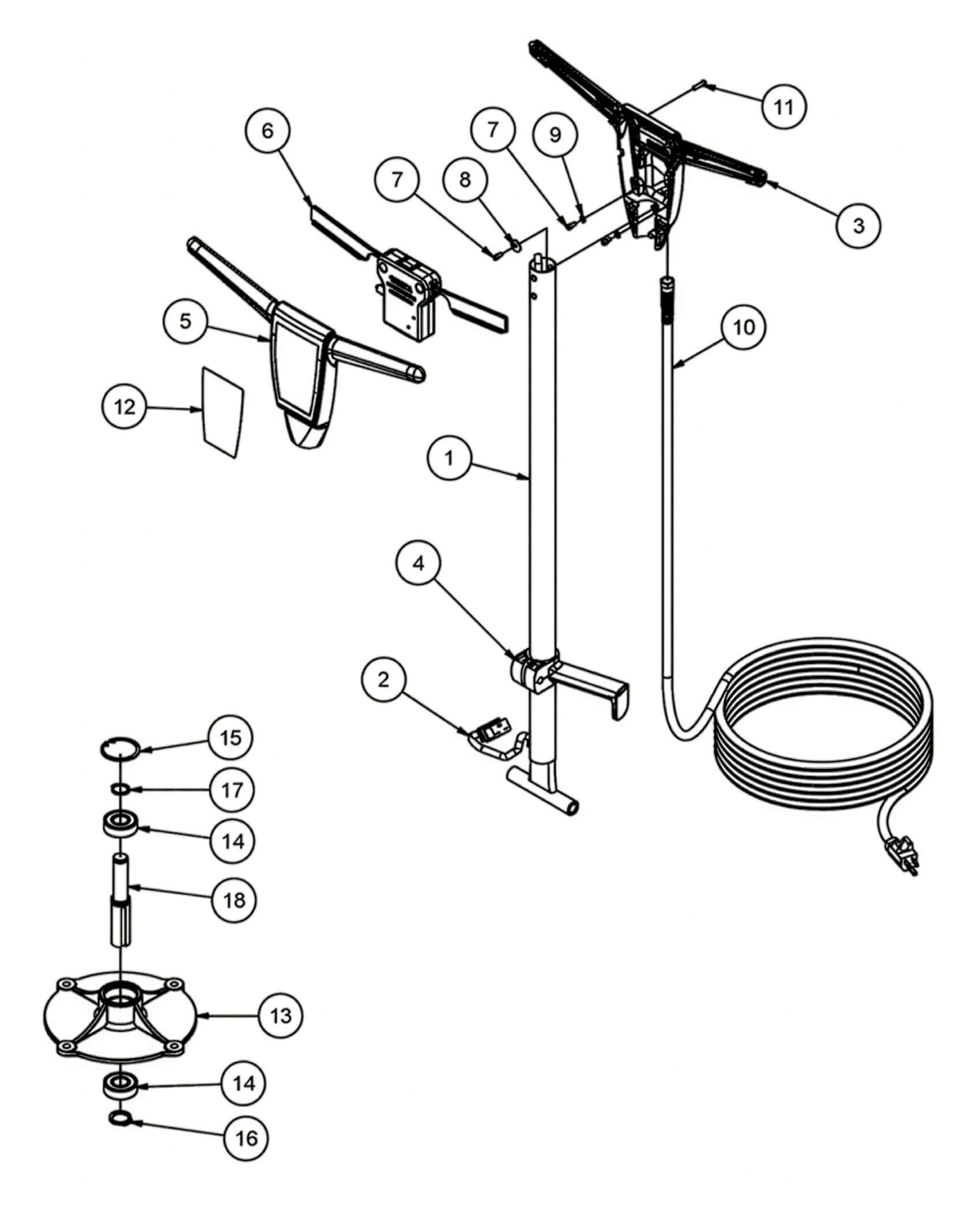

Handle Assembly
| ITEM NO. | QTY. | PART NUMBER | DESCRIPTION |
|---|---|---|---|
| 1 | 1 | 61373A | HANDLE TUBE |
| 2 | 1 | 40789A | CORD INTERCONNECT |
| 3 | 1 | 21075A | HANDLE, REAR - CFP |
| 4 | 1 | 50781A | CLAMP HANDLE C2K |
| 5 | 1 | 21074A | HANDLE, FRONT - CFP |
| 6 | 1 | 10687A | INTERLOCK ASM. |
| 7 | 3 | 80290A | SCREW, 10-32 UNF X .375 |
| 8 | 1 | 80291A | WASHER, FLAT, #10 |
| 9 | 2 | 980603 | WASHER, LOCK, #10 EXT |
| 10 | 1 | MP476300 | CORD, POWER, 14/3, YELLOW |
| 11 | 6 | 80284A | SCREW, 10-32 UNF X .75 |
| 12 | 1 | MP504400 | DECAL, HANDLE, 225BU |
| 13 | 1 | MP504200 | HOUSING, BEARING, SPINDLE, FRONT |
| 14 | 2 | 902567 | BEARING, BALL, DOUBLE SEALED |
| 15 | 1 | 167312 | RING, RETAINER, INTERNAL |
| 16 | 1 | NB018500 | RING, RETAINER, 3/4", C-STYLE, HD |
| 17 | 1 | NB070200 | RING, RETAINING, EXT |
| 18 | 1 | MP503500 | SHAFT, SPINDLE, FRONT |
