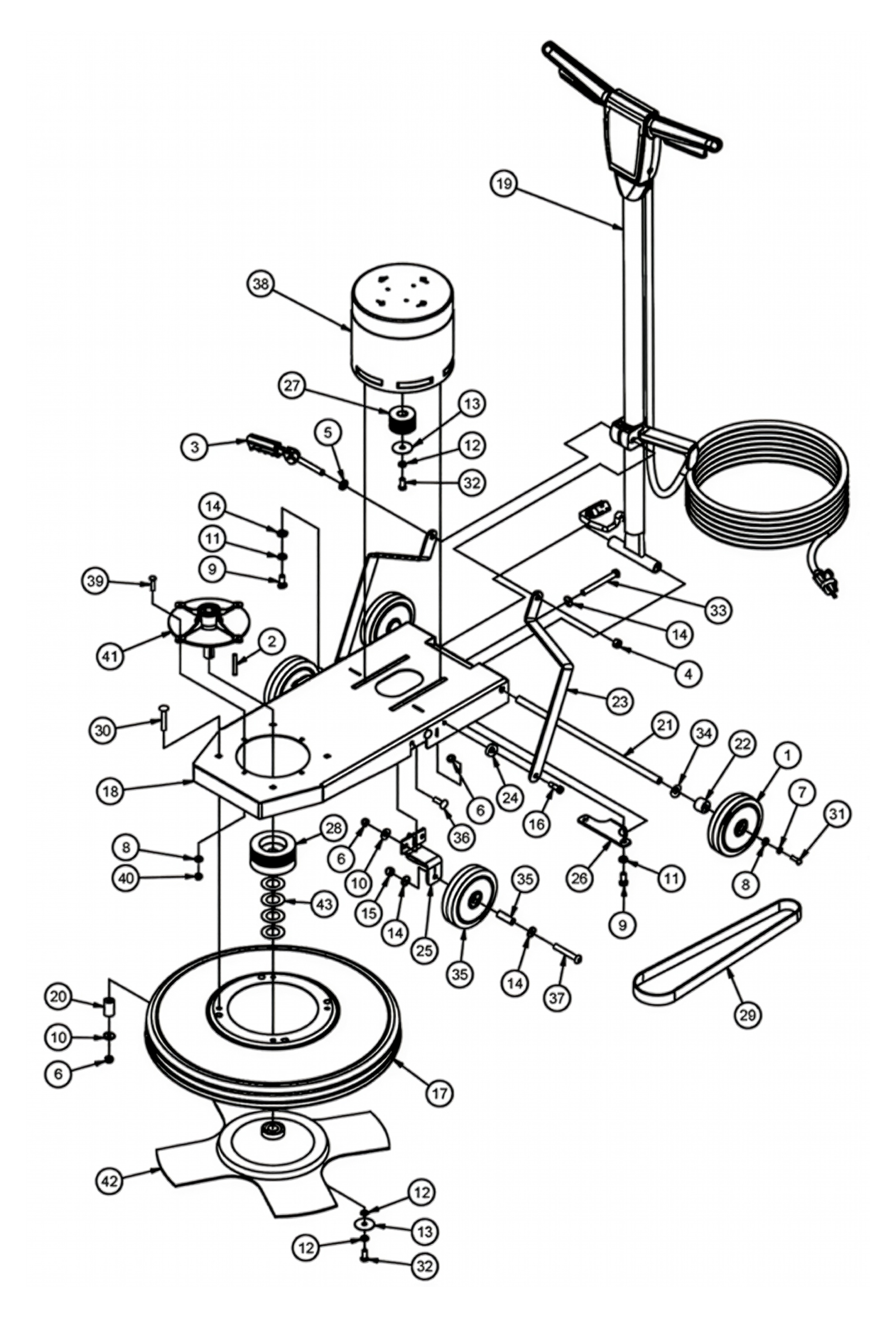

202 Main Assembly

202 Main Assembly

ITEM NO.	QTY.	PART NUMBER	DESCRIPTION
1	2	39857A	WHEEL 5 POLISHER
2	1	MP236800	KEY, 3/16 X 1 7/8
3	1	56109699	CAM ASSY WITH GRIP
4	1	920342	NUT LK 3/8-16 REG
5	1	980349	WASHER WEAR CAM
6	10	NB3265	NUT, LOCK, 5/16-18, NC
7	2	NB6110	WASHER, LOCK, 1/4"
8	6	NB3350	WASHER, FLAT, 1/4"
9	4	NB6851	SCREW, CAP, HH, 3/8-16 X 3/4
10	8	NB9267	WASHER, FLAT, 5/16"
11	4	MX1075	WASHER, LOCK, 3/8"
12	3	NB6111	WASHER, LOCK, 5/16"
13	2	NB9505	WASHER, FLAT, 5/16" X 1 1/2"
14	7	MX1080	WASHER, FLAT, 3/8"
15	2	NB3267	NUT, LOCK, 3/8", NC
16	2	80026A	BOLT, SHOULDER, 3/8 X 1/2
17	1	MP478000	SHROUD, 20", W/BUMPER, ASM.
18	1	MP502300	FRAME, 225BU, WELDMENT
19	1	MP474000	HANDLE, 225FP, ASM.
20	4	MP503600	STANDOFF, NYLON
21	1	MP503900	AXLE, REAR
22	2	MP503800	SPACER, WHEEL
23	2	MP502800	BRACKET, SUPPORT, HANDLE
24	2	MP503700	SPACER, PIVOT, NYLON
25	2	MP503000	BRACKET, WHEEL, WELDMENT
26	1	MP504500	BRACKET, ADJUSTMENT, BELT, ASM
27	1	MP505100	PULLEY, 2" DIA., 10 GROOVE
28	1	MP503300	PULLEY, 3.5" DIA., 10 GROOVE
29	1	MP505400	BELT, 37", J SECTION
30	4	NB073200	BOLT, CARRIAGE, 5/16-18 X 2
31	2	NB019100	BOLT, HEX, 1/4-20 X 3/4
32	2	NB9745	SCREW, CAP, 5/16-18 X 3/4
33	1	NB073300	BOLT, HEX, 3/8-16 X 3 1/2
34	2	80295A	WASHER, BOWED
35	2	MP060800	WHEEL, 5", PERFORMA
36	4	NB5000	BOLT, CARRIAGE, 5/16 X 1
37	2	NB073100	SCREW, BH, 3/8-16 X 2 1/2
38	1	MP504100	MOTOR, 1.5HP, 115V
39	4	85700A	SCREW, CAP, HH, 1/4-20 X 1
40	4	NB3275	NUT, LOCK, 1/4"
41	1	MP504600	HOUSING, BEARING, SPINDLE, FRONT, ASM.
42	1	MP506700	PADHOLDER, 18", X-PAD
43	4	NB069900	WASHER, SHIM

43 result(s)

43 result(s)

Sort by:

total selected Clear selection

Available on

WHEEL, 5", PERFORMA, FLAT TREA

39857A / -

WHEEL, 5", PERFORMA, FLAT TREA

Available on

CAM ASSY WITH GRIP

56109699 / -

CAM ASSY WITH GRIP

Available on

BOLT SHOULDER 3/8 X 1/2

80026A / -

BOLT SHOULDER 3/8 X 1/2

Available on

WASHER, BOWED .516ID X 1.06OD

80295A / -

WASHER, BOWED .516ID X 1.06OD

Available on

SCREW, CAP, HH, 1/4-20 X 1

85700A / -

SCREW, CAP, HH, 1/4-20 X 1

Available on

Nut Esna 3/8-16

920342 / -

Nut Esna 3/8-16

Available on

WASHER WEUSE AS087800

980349 / -

Available on

WHEEL, 5", PERFORMA, DELRIN W/

MP060800 / -

WHEEL, 5", PERFORMA, DELRIN W/

Available on

KEY, 3/16 X 1 7/8

MP236800 / -

KEY, 3/16 X 1 7/8

Available on

HANDLE, 225FP, ASM.

MP474000 / -

HANDLE, 225FP, ASM.

Available on

SHROUD, 20", W/BUMPER, ASM.

MP478000 / -

SHROUD, 20", W/BUMPER, ASM.

Available on

FRAME, 225BU, WELDMENT

MP502300 / -

FRAME, 225BU, WELDMENT

Available on

BRACKET, SUPPORT, HANDLE

MP502800 / -

BRACKET, SUPPORT, HANDLE

Available on

BRACKET, WHEEL, WELDMENT

MP503000 / -

BRACKET, WHEEL, WELDMENT

Available on

PULLEY, 3.5"DIA., 10 GROOVE, J

MP503300 / -

PULLEY, 3.5"DIA., 10 GROOVE, J

Available on

STANDOFF, NYLON, 3/4"OD X 1 1/

MP503600 / -

STANDOFF, NYLON, 3/4"OD X 1 1/

Available on

SPACER, PIVOT, NYLON, 1"OD X 3

MP503700 / -

SPACER, PIVOT, NYLON, 1"OD X 3

Available on

SPACER, WHEEL, NYLON, 1"OD X 1

MP503800 / -

SPACER, WHEEL, NYLON, 1"OD X 1

Available on

SHAFT, AXLE, REAR, 1/2"DIA X 1

MP503900 / -

SHAFT, AXLE, REAR, 1/2"DIA X 1

Available on

MOTOR, 1.5HP, 115V, 3200RPM

MP504100 / -

MOTOR, 1.5HP, 115V, 3200RPM

Available on

BRACKET, ADJUSTMENT, BELT, ASM

MP504500 / -

BRACKET, ADJUSTMENT, BELT, ASM

Available on

HOUSING, BEARING, SPINDLE, FRO

MP504600 / -

HOUSING, BEARING, SPINDLE, FRO

Available on

PULLEY, 2"DIA., 10 GROOVE, J-S

MP505100 / -

PULLEY, 2"DIA., 10 GROOVE, J-S

Available on

BELT, 37", J-SECTION, 10 GROOV

MP505400 / -

BELT, 37", J-SECTION, 10 GROOV

Available on

PADHOLDER, 18", X-PAD, W/BIG M

MP506700 / -

PADHOLDER, 18", X-PAD, W/BIG M

Available on

Washer, Lock, 3/8

MX1075 / -

Washer, Lock, 3/8

Available on

Washer, Flat, 3/8

MX1080 / -

Washer, Flat, 3/8

Available on

BOLT, HEX, 1/4” X 3/4”

NB019100 / -

BOLT, HEX, 1/4” X 3/4”

Available on

WASHER, SHIM, 1.75 O.D. X 1.01

NB069900 / -

WASHER, SHIM, 1.75 O.D. X 1.01

Available on

SCREW, BH, 3/8-16 X 2 1/2, SS

NB073100 / -

SCREW, BH, 3/8-16 X 2 1/2, SS

Available on

BOLT, CARRIAGE, 5/16-18 X 2, G

NB073200 / -

BOLT, CARRIAGE, 5/16-18 X 2, G

Available on

BOLT, HEX, 3/8-16 X 3 1/2, TAP

NB073300 / -

BOLT, HEX, 3/8-16 X 3 1/2, TAP

Available on

NUT, LOCK, 5/16-18 NC

NB3265 / -

NUT, LOCK, 5/16-18 NC

Available on

NUT, LOCK, 3/8 NC

NB3267 / -

NUT, LOCK, 3/8 NC

Available on

NUT, LOCK, 1/4"

NB3275 / -

NUT, LOCK, 1/4"

Available on

WASHER, FLAT, 1/4

NB3350 / -

WASHER, FLAT, 1/4

Available on

BOLT, CARRIAGE, 5/16 X 1

NB5000 / -

BOLT, CARRIAGE, 5/16 X 1

Available on

WASHER, LOCK, 1/4"

NB6110 / -

WASHER, LOCK, 1/4"

Available on

WASHER, LOCK, 5/16"

NB6111 / -

WASHER, LOCK, 5/16"

Available on

SCREW, CAP, HH, 3/8-16 X 3/4

NB6851 / -

SCREW, CAP, HH, 3/8-16 X 3/4

Available on

WASHER, FLAT, 5/16

NB9267 / -

WASHER, FLAT, 5/16

Available on

WASHER, FLAT, 5/16 X 1 1/2

NB9505 / -

WASHER, FLAT, 5/16 X 1 1/2

Available on

SCREW, CAP, 5/16-18 X 3/4

NB9745 / -

1 of 1
