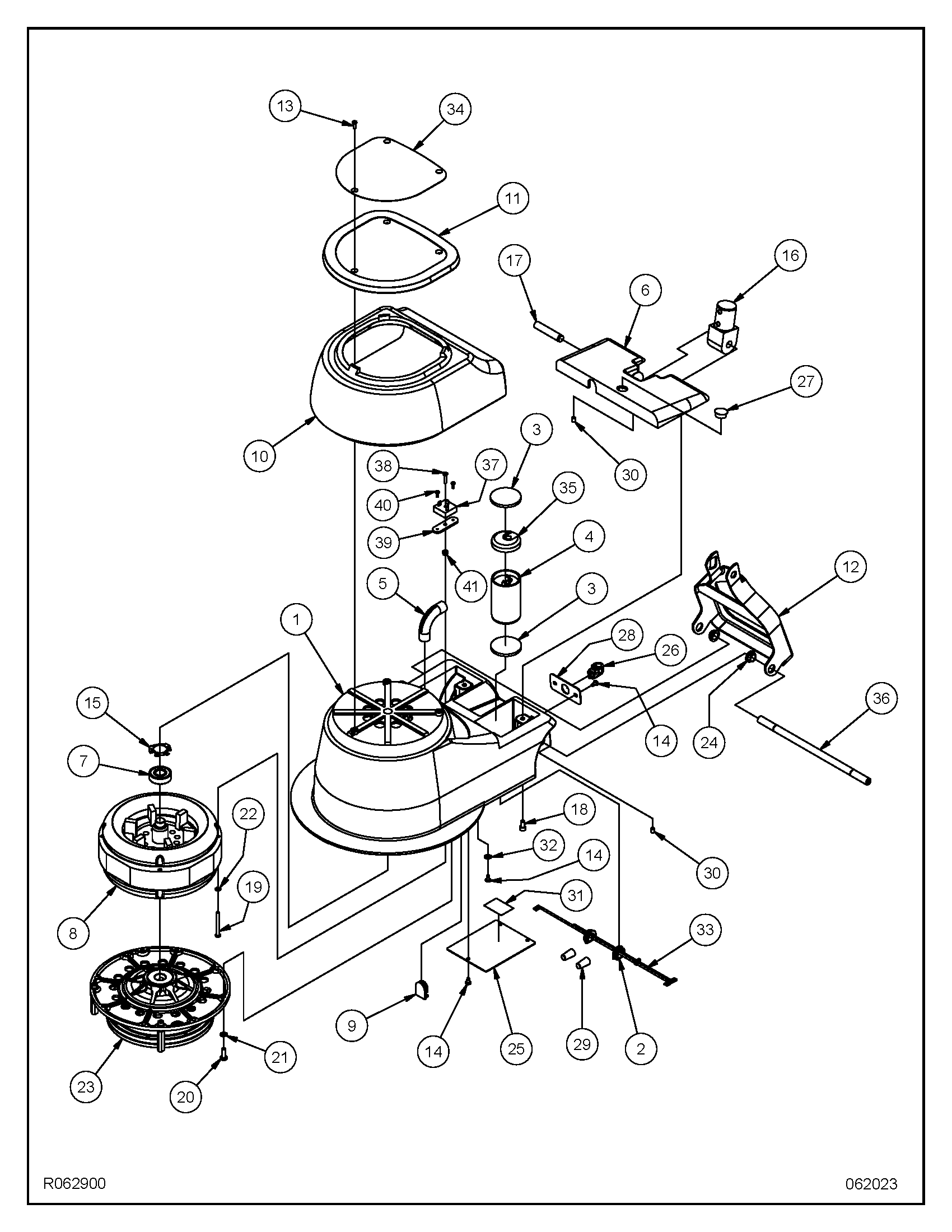

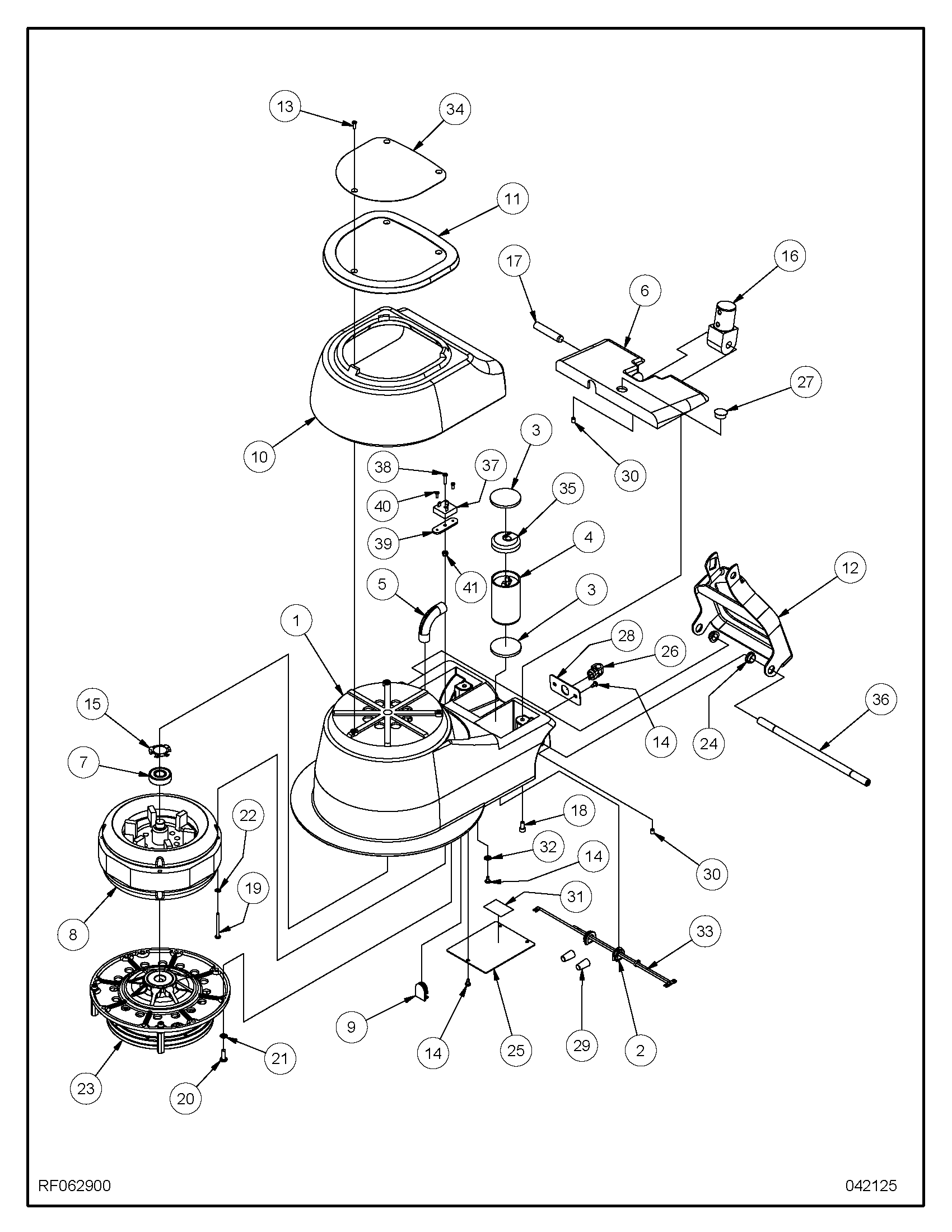

FM Base Assembly RF062900

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	PART NO	DESCRIPTION	QTY	ITEM	PART NO	DESCRIPTION	QTY
1	24502C	HOUSING-MAIN FM1500-2000	1	22	980603	WASHER, LK 10 EXT TOOTH	4
2	501142	BUSHING FM	2	23	503542	GEAR UNIT ASM FM	1
3	502403	FM17 CUSHION CAPACITOR	2	24	501141	BUSHING LINK ARM	2
4	502402	FM17 CAPACITOR 115V	1	25	502342	COVER MAIN HSG BOTTOM FM	1
5	504740	INSULATOR ELBOW FM	1	26	857557	STRAIN RELIEF R042	1
6	22105A	COVER MAIN HOUSING FM	1	27	501345	PLUG BUTTON 25/32 FM	1
7	902550	BEARING, BALL, 6203	1	28	66636A	PLATE-STRAIN RELIEF	1
8	40658A	FIELD AND ROTOR KIT	1	29	170667	CONNECTOR, WIRE NUT, 74B, YELLOW	2
9	506842	PLUG FM	1	30	962233	SCR 1/4-20 X 5/16 ST ST KNURL	2
10	31237B	BUMPER MAIN HSG.	1	31	509806	WIRING DIAGRAM FM-15-17	1
11	22106A	COVER-DRIP	1	32	980675	WASH- .190IDX X .406OD EX TH	1
12	500342	ARM ADJUSTING WELDT	1	33	40254A	HARNESS WIRE CAPACITOR FM	1
13	962727	SCREW, 8-32 X 1/2 PN ST TP23 PH	3	34	MP498000	PLATE, NAME, LABEL, FM	1
14	962826	SCREW 10-24X 3/8 PN ST TP F PH	6	35	502304	FM17 COVER CAPACITOR	1
15	318303	SPRING, LOAD, 76	1	36	507741	SHAFT, WHEEL	1
16	509240	TONGUE, HANDLE TUBE	1	37	AS112400	SWITCH, START, 125V, 25A	1
17	506740	PIN HANDLE PIVOT FM	1	38	85614A	SCREW 8-32X3/4 PAN HD	1
18	962337	SCREW 1/4-20 X 1/2 SC ST CAP	5	39	MP556800	BRACKET, START SWITCH, FM	1
19	85310A	SCREW 10-24 X 2 PAN HD	4	40	962330	SCREW 6-32 X 3/8 PAN HD	2
20	962892	SCREW, 1/4-20 X 3/4 PN ST	8	41	920065	NUT, 8-32, ESNA 22NM-82	1
21	980614	WASHER, LOCK, 1/4, EXT. TOOTH	8	42	SA388900	RELAY, MOTOR, START (115V ONLY) (NOT SHOWN)	1
