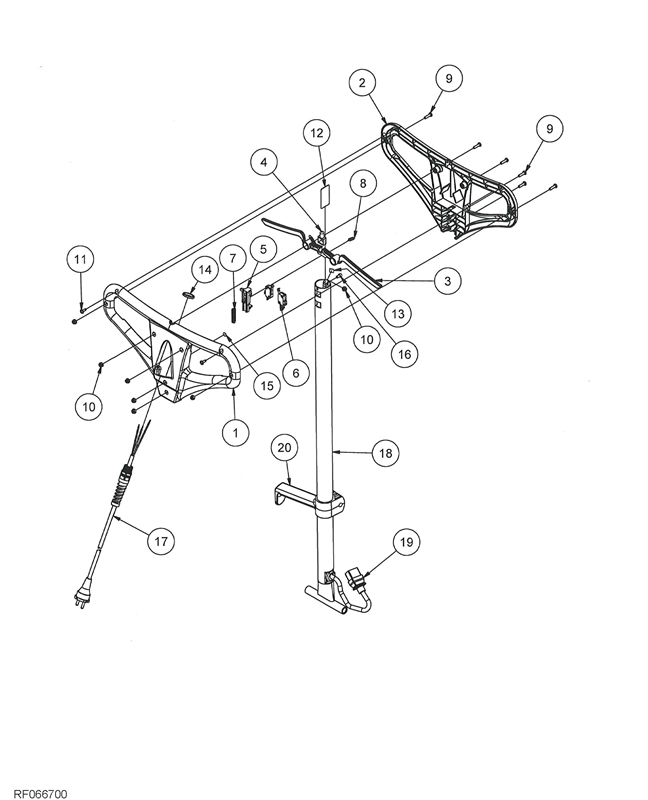

225FP Handle Assembly 225FP17EB & 225FP20EB RF066700

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	50780A	HANDLE, REAR, C2K	1	12	50930A	CORD RETAINER, C2K	1
2	30285A	HANDLE FRONT C2K W/BLANK	1	13	77094A	LABEL, GROUND SYMBOL	1
3	50798A	LEVER, SWITCH, C2K	2	14	170686	NUTLK FOR 1/2 CONDUIT	1
4	50806A	BUTTON, INTERLOCK, C2K	1	15	AS006800	DECAL “N”	1
5	50799A	INTERLOCK, MAIN, C2K	1	16	80290A	SCREW, 10-32 UNF X .375	1
6	40109A	SWITCH, MINIATURE-SPNO, C2K	2	17	MP506300	CORD, POWER SUPPLY, BRAZIL (EB)	1
7	50821A	SPRING, COMPRESSION, C2K	1	17	AS018800	CORD, POWER SUPPLY, CE (E)	1
8	50820A	SPRING, EXTENSION, C2K	2	18	AS017400	HANDLE, TUBE, WELDMENT	1
9	85383A	SCREW 10-32 X 3/4 PAN HD	6	19	AS018000	CORD, INTERCONNECT, EXPORT	1
10	920722	BUT, 10-32 ELASTIC STOP ZN. PL.	7	20	50781A	CLAMP HANDLE C2K	1
11	962957	SCREW, 10-16 X 1/2 HI-LO	2	21	MP500900	DECAL, PE225FP, HANDLE, EXPORT (NOT SHOWN)	1
