To purchase parts for the 225BU202 (Main Assembly RF071300):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

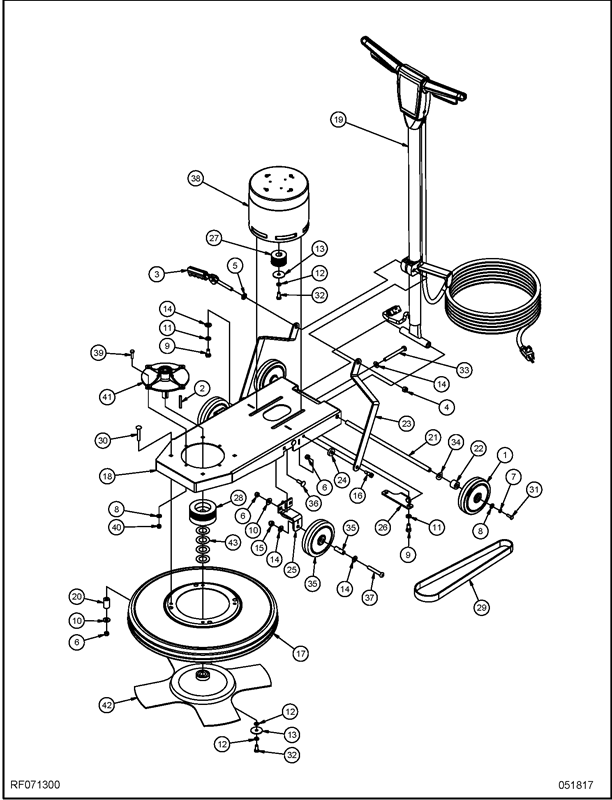

225BU202_RF071300_Main Assembly_2000RPM 1

ItemPart NumberDescriptionQTY ItemPart NumberDescriptionQTY
139857AWHEEL 5 POLISHER2 23MP502800BRACKET, SUPPORT, HANDLE2
2MP236800KEY, 3/16 X 1 7/81 24MP503700SPACER, PIVOT, NYLON,1" OD X .38" ID X .315 L2
356109699CAM ASSY WITH GRIP1 25MP503000BRACKET, WHEEL, WELDMENT2
4920342NUT LK 3/8 -16 REG1 26MP504500BRACKET, ADJUSTMENT, BELT, ASM1
5980349WASHER WEAR CAM1 27MP505100PULLEY, 2" DIA., 10 GROOVE, J SECTION1
6NB3265NUT, LOCK, 5/16"-18, NC10 28MP503300PULLEY, 3.5" DIA., 10 GROOVE, J SECTION1
7NB6110WASHER, LOCK, 1/4"2 29MP505400BELT, 37", J SECTION, 10 GROOVE1
8NB3350WASHER, FLAT, 1/4"6 30NB073200BOLT, CARRIAGE, 5/16-18 X 2 , ZINC4
9NB6851SCREW, CAP, HH, 3/8-16 X 3/44 31NB019100BOLT, HEX, 1/4-20 X 3/4, GD 52
10NB9267WASHER, FLAT, 5/16"8 32NB9745SCREW, CAP, 5/16"-18 X 3/4"2
11MX1075WASHER, LOCK, 3/8"4 33NB073300BOLT, HEX, 3/8-16 X 3 1/2, TAP, GD5, ZINC1
12NB6111WASHER, LOCK, 5/16"3 3480295AWASHER BOWED .516ID X 1.06OD2
13NB9505WASHER, FLAT, 5/16" X 1 1/2"2 35MP060800WHEEL, 5", PERFORMA, W/ BUSHING2
14MX1080WASHER, FLAT, 3/87 36NB5000BOLT, CARRIAGE, 5/16 X 14
15NB3267NUT, LOCK, 3/8", NC2 37NB073100SCREW, BH, 3/8-16 X 2 1/2, SS2
1680026ABOLT SHOULDER 3/8 X 1/22 38MP504100MOTOR, 1.5HP, 115V, 3200RPM1
17MP478000SHROUD, 20", W/BUMPER, ASM.1 3985700ASCREW, CAP, HH, 1/4-20 X 14
18MP502300FRAME, 225BU, WELDMENT1 40NB3275NUT, LOCK, 1/4"4
19MP474000HANDLE, 225FP, ASM.1 41MP504600HOUSING, BEARING, SPINDLE, FRONT, ASM.1
20MP503600STANDOFF, NYLON, .75 DIA. X 1.25 L4 42MP506700PADHOLDER, 18", X-PAD, W/KEYED RISER1
21MP503900AXLE, REAR, .50 DIA. X 15.43 L1 43NB069900WASHER, SHIM, 1.75 OD X 1.015 ID4
22MP503800SPACER, WHEEL, 1" OD X .5" ID X .75 L2
