300BU Skirt, Deck & Axle Bracket Assembly

To purchase parts for the 300BU (Skirt, Deck & Axle Assembly)

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

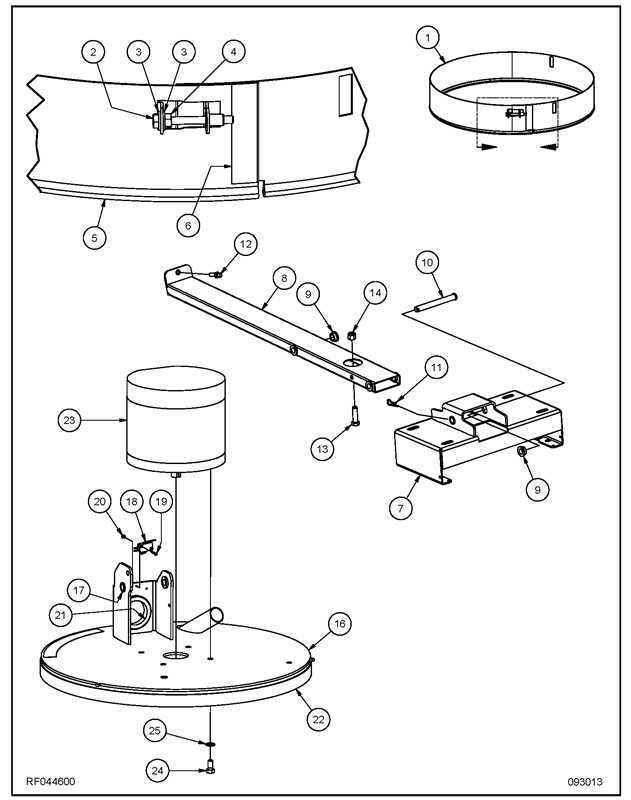

PE300BU_Skirt Deck Axle Assembly 1

Item	Part Number	Description	QTY		Item	Part Number	Description	QTY
1A	MP425200	SKIRT, 20”, ASM.	1		13B	NB068800	BOLT, HEX, 7/16” X 1-1/2” (24”)	1
1B	MP434200	SKIRT, 24”, ASM.	1		14A	NB014600	NUT, LOCK, 1/2” (20”)	1
1C	MP526200	SKIRT, 27”/28”	1		14B	NB067700	NUT, LOCK, 7/16” (24”)	1
2	NB050600	BOLT, HEX, 1/4” X 2-1/2”	1		15	N/A	N/A	-
3	NB3350	WASHER, FLAT, 1/4”	2		16A	MP432600	SHROUD, 20”, ASM.	1
4	MX1045	NUT, HEX, 1/4”	1		16B	MP438800	SHROUD, 24”, ASM.	1
5A	MP139800	EDGING, WEAR, SKIRT (20”)	6 FT		17	MP237100	BUSHING, FLANGED, 1/2”	2
5B	MP139800	EDGING, WEAR, SKIRT (24”)	7 FT		18	MP318400	SWITCH, MICRO, 12V	1
5C	MP139800	EDGING, WEAR, SKIRT (27/28”)	8 FT		19	NB9625	SCREW, #4 X 3/4”	2
6	MP6600	FELT, VELCRO, BLK, 2”	2 (4”)		20	NB007000	NUT, LOCK, #4	2
7	MP423700	BRACKET, AXLE / TRANSAXLE	1		21	NB043800	GROMMET, 2” ID	1
8	MP423800	TUBE, MOUNT, SHROUD	1		22A	MP415100	FELT, VELCRO, BLK, 1” (20”)	6 FT
9	MP237100	BUSHING, FLANGED, 1/2”	6		22B	MP415100	FELT, VELCRO, BLK, 1” (24”)	7 FT
10	NB039704	PIN, CLEVIS, 1/2” X 4-1/2”	1		23A	MP424200	MOTOR, 2000 RPM, ASM. (20”)	1
11	NB025600	PIN, PRESTO, 3/32” X 1-5/8”	1		23B	MP434100	MOTOR, 1800 RPM, ASM. (24”)	1
12	MP414300	BALL, STUD, 10MM	1		24	NB6851	BOLT, HEX, 3/8” X 3/4”	4
13A	NB068900	BOLT, HEX, 1/2” X 1-1/2” (20”)	1		25	MX1075	WASHER, LOCK, 3/8”	4
