To purchase parts for the 300BU (Skirt, Deck & Axle Assembly)

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

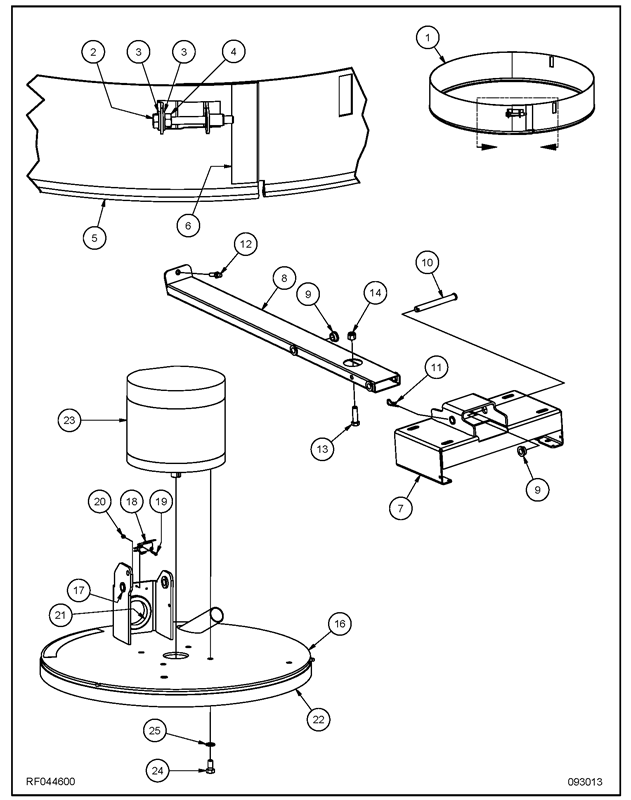

PE300BU_Skirt Deck Axle Assembly 1

ItemPart NumberDescriptionQTYItemPart NumberDescriptionQTY
1AMP425200SKIRT, 20”, ASM.113BNB068800BOLT, HEX, 7/16” X 1-1/2” (24”)1
1BMP434200SKIRT, 24”, ASM.114ANB014600NUT, LOCK, 1/2” (20”)1
1CMP526200SKIRT, 27”/28”114BNB067700NUT, LOCK, 7/16” (24”)1
2NB050600BOLT, HEX, 1/4” X 2-1/2”115N/AN/A-
3NB3350WASHER, FLAT, 1/4”216AMP432600SHROUD, 20”, ASM.1
4MX1045NUT, HEX, 1/4”116BMP438800SHROUD, 24”, ASM.1
5AMP139800EDGING, WEAR, SKIRT (20”)6 FT17MP237100BUSHING, FLANGED, 1/2”2
5BMP139800EDGING, WEAR, SKIRT (24”)7 FT18MP318400SWITCH, MICRO, 12V1
5CMP139800EDGING, WEAR, SKIRT (27/28”)8 FT19NB9625SCREW, #4 X 3/4”2
6MP6600FELT, VELCRO, BLK, 2”2 (4”)20NB007000NUT, LOCK, #42
7MP423700BRACKET, AXLE / TRANSAXLE121NB043800GROMMET, 2” ID1
8MP423800TUBE, MOUNT, SHROUD122AMP415100FELT, VELCRO, BLK, 1” (20”)6 FT
9MP237100BUSHING, FLANGED, 1/2”622BMP415100FELT, VELCRO, BLK, 1” (24”)7 FT
10NB039704PIN, CLEVIS, 1/2” X 4-1/2”123AMP424200MOTOR, 2000 RPM, ASM. (20”)1
11NB025600PIN, PRESTO, 3/32” X 1-5/8”123BMP434100MOTOR, 1800 RPM, ASM. (24”)1
12MP414300BALL, STUD, 10MM124NB6851BOLT, HEX, 3/8” X 3/4”4
13ANB068900BOLT, HEX, 1/2” X 1-1/2” (20”)125MX1075WASHER, LOCK, 3/8”4
