To purchase parts for the 300BU (Main Top Assembly RF044300):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

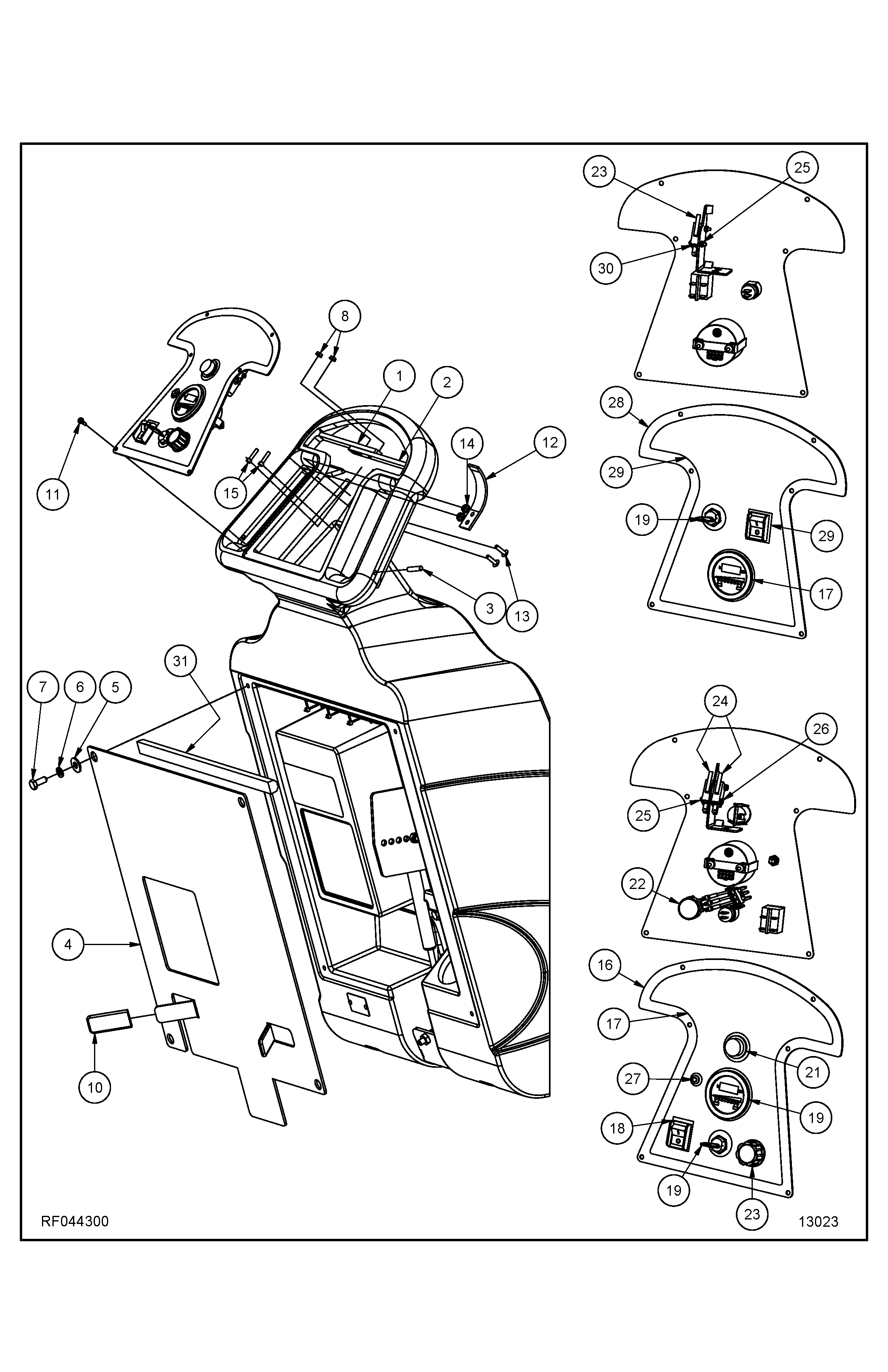

PE300BU_Main Top Assembly RF044300 1

Item Part Number Description Qty  Item Part Number Description Qty
1A MP423201 LEVER, HANDLE, LEFT 1  19 MP414501 METER, HOUR/ BATTERY IND. 1
1B MP529610 LEVER, HANDLE, LEFT (300BU2728 ONLY) 1  20 MP411300 SWITCH, KEY, 36V 1
2A MP423202 LEVER, HANDLE, RIGHT 1  20B KC4834001 REPLACEMENT KEY (NOT SHOWN) 1
2B MP529710 LEVER, HANDLE, RIGHT (300BU2728 ONLY) 1  21 MP505600 SWITCH, PUSH, 250V (TRAC. ONLY) 1
3 NB6390 PIN, ROLL, 1/4 X 1 1/8 2  22 PG016400 POTENTIOMETER, ASM. (TRAC. ONLY) 1
4 MP431401 PLATE, COVER, REAR, W/ SLOT 1  23 MP418000 KNOB, PHENOLIC (TRAC. ONLY) 1
5 NB9267 WASHER, FLAT, 5/16" 35  24 MP318400 SWITCH, MICRO, 12V 1
6 NB6111 WASHER, LOCK, 5/16" 33  25 NB051000 SCREW, MACH., PAN HD., 4-40 X 1 2
7 NB9745 SCREW, CAP, 5/16"-18 X 3/4" 30  26 NB007000 NUT, LOCK, NYLON, 4-40 4
8 NB9710 NUT, KEPS, 8-32, ZINC 4  27 SA028000 LED, RED, 36V, REPLACEMENT, KIT 1
9 NB041200 SCREW, PAN HEAD, #8 X 3/4" 2  28 MP494800 SWITCH, ROCKER, DPST, W/GUARD 1
10 MP077400 COVER, TENSION, SPRING (CUT TO 2.5" LONG) 2  29 MP424100 PANEL, CONTROL, PAD ASSIST 1
11 NB043600 SCREW, PH, HI-LO, #8 x 3/8" 6  30 MP498700 DECAL, CONTROL PANEL 1
12 MP432900 SPRING, HANDLE LEVER, 1/8"X1"X4" 1  31 MP411300 SWITCH, KEY, 36V 1
13 NB9510 NUT, SPIN LOCK, 10-24 2  32 MP414500 METER, HOUR/ BATTERY INDICATOR, 12-48V 1
14 MX1025 SCREW, PAN HD, 10-24 X 3/4 2  33 MP318400 SWITCH, MICRO, 12V, 15A, 1" LEVER 1
15 MP038300_A MOLDING, BATTERY COVER 1  34 NB9625 SCREW, 4-40 X 3/4" 2
16 MP530300 SPACER, BU300 SPEED CONTROL 1  35 NB007000 NUT, LOCK, NYLON, 4-40 2
17 MP431600 PANEL, CONTROL, TRACTION 1  36 MP494800 SWITCH, ROCKER, DPST, W/GUARD 1
18 MP498600 DECAL, CONTROL PANEL, TRACTION 1
