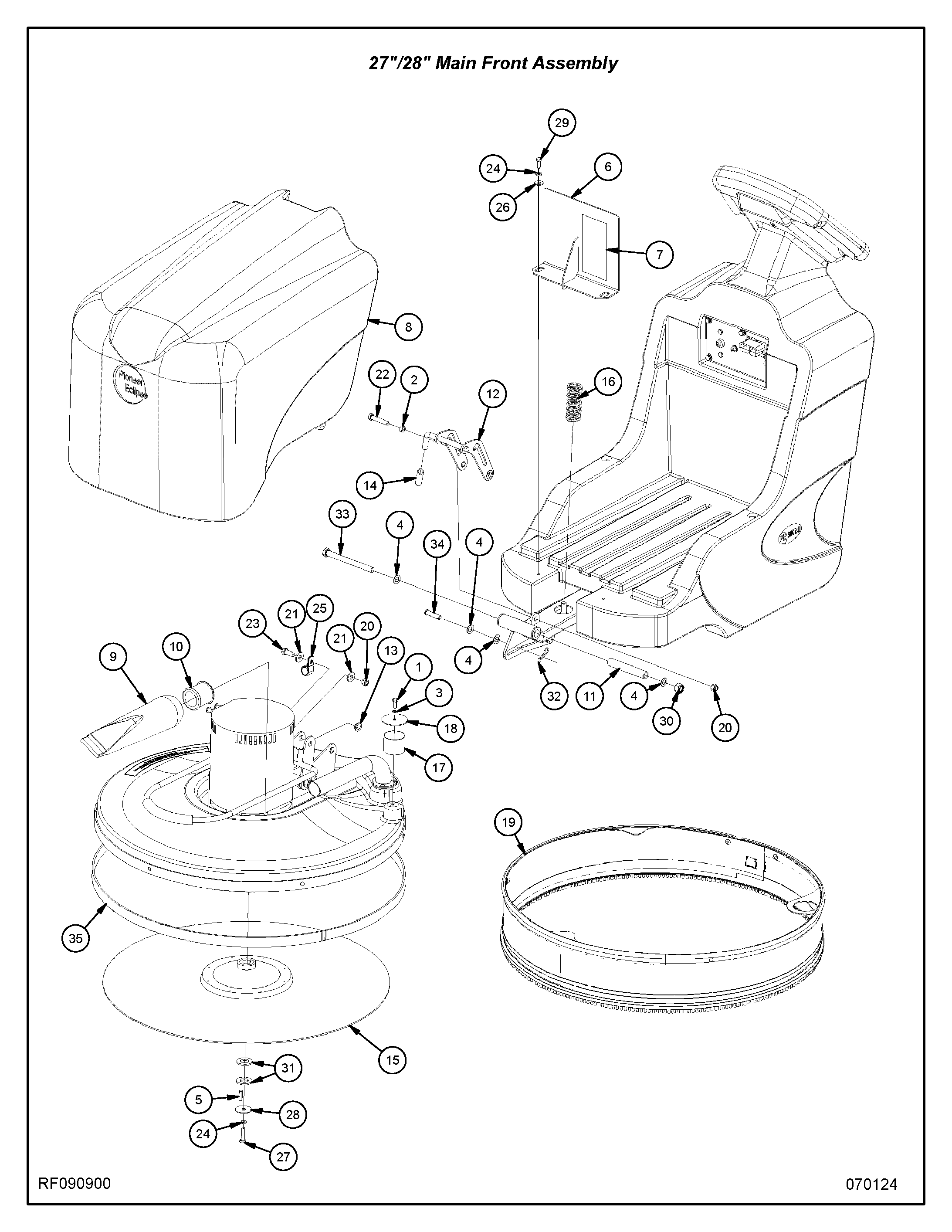

300BU 27-/28- Main Front Assembly RF090900

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION
1	1	85806A	SCREW 1/4-20 X 3/4 HX SZ CAP
2	1	920148	NUT, 3/8-16 JAM
3	1	980657	WASHER, LOCK 1/4"
4	4	980673	WASHER FLT 1/2 ID X 7/8 OD
5	1	BA003200	KEY, 3/16 X 1
6	1	MP423900	RETAINER, BATTERY, WELDMENT
7	1	MP429600	DECAL, BATTERY CONN., 36V
8	1	MP432700	COVER, BATTERY, 300BU, ASM.
9	1	MP469300	BAG, DUST, 12"
10	1	MP469400	GROMMET, 1.5 ID X 2.0 OD, X 1.84 W
11	2	MP526700	TUBE, SPACER 3/4OD x 1/2 ID
12	1	MP527810	WLDMT, 300BU27 LATCH
13	4	MP528002	BUSHING, IGUS, JFI-0809-04
14	1	MP528700	GRIP, YELLOW, 1/2" ID x 3.5" LONG
15	1	MP438900	PADHOLDER, 27", MALISH, W/KEYED, BLUE
16	1	MP530500	SPRING, COMP., .1.086 ID X 1.46 OD X 3.5" L.
17	1	MP554200	TUBE, SKIRT RETAINER
18	1	MP554401	PLATE, SKIRT RETAINER
19	1	MP564700	SKIRT ASM., 300 BU, 27/28
20	2	NB3267	NUT, LOCK, 3/8", NC
21	2	NB3450	WASHER, FLAT, 3/8"
22	1	NB4791	SCREW, CAP, 3/8" X 2"
23	1	NB6042	SCREW, CAP, 3/8" X 1"
24	3	NB6111	WASHER, LOCK, 5/16"
25	1	NB8130	CLAMP, 3/4" ID, RETAINER
26	2	NB9267	WASHER, FLAT, 5/16"
27	1	NB9500	SCREW, CAP, 5/16-24 X 1 1/4
28	3	NB9505	WASHER, FLAT, 5/16" X 1 1/2"
29	2	NB9745	SCREW, CAP, 5/16"-18 X 3/4"
30	2	NB014600	NUT, LOCK, 1/2 - 13
31	2	NB018600	WASHER, FLAT, 3/4"
32	1	NB025600	PIN, PRESTO, 3/32 X 1 5/8, SS
33	2	NB074100	SCREW, CAP, HH, 1/2-13 X 5 1/2
34	1	NB039704	PIN, CLEVIS, 3/8 X 1.63L
35	1	MP538092	FELT, 4mm BLACK POLYESTER
