310AS Pad Drive Assembly

Call Us: 800-367-3550
International +1-336-372-8080

To purchase parts for the 310AS (Pad Drive Assembly):

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

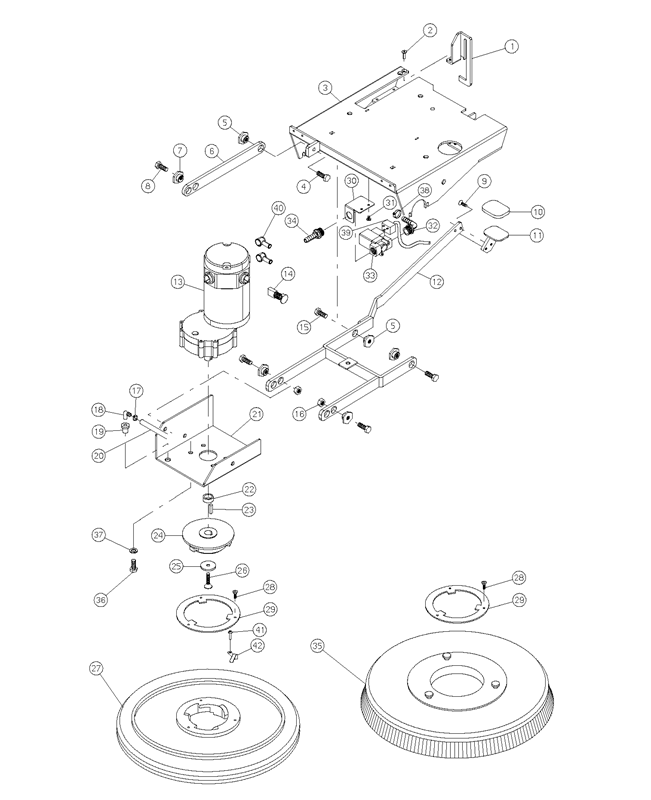

310AS Pad Drive Assembly 1

Item	Part Number	Description	Qty		Item	Part Number	Description	Qty
1	ST121	BRACKET, GUIDE, LIFT, PAD	1		23	CH048	KEY, STRAIGHT, M6	1
2	VS421	SCREW, C. SINK, M6 X 12	2		24	FL071	FLANGE, DRIVE, MOTOR	1
3	TP116	FRAME, BASE	1		25	VI020	WASHER, C.SINK, SPECIAL	1
4	VE492	SCREW, M10 X 25	1		26	WS034	SCREW, C. SINK, 5/16” X 3/4”	1
5	BO156	BUSHING, LEVER, PAD	4		27	TS037	PAD HOLDER	1
6	LV294	LINKAGE, LIFT, PAD	1		28	VD235	SCREW, C. SINK, M4 X 19	3
7	BO157	BUSHING, LEVER, ECCENTRIC	2		29	FL072	PLATE, FLANGE, PAD	1
8	VE492	SCREW, M10 X 25	1		30	SU453	BRACKET, SOLENOID	1
9	VS421	SCREW, C. SINK, M6 X 12	2		31	VC411	SCREW, M5 X 8	2
10	IS001	PAD, PEDAL	1		32	RC050	FITTING, ELBOW, 1/2” NPT	1
11	LM175	PEDAL, LIFT, PAD	1		33	RB015	VALVE, SOLENOID, ASM.	1
12	LV282	LEVER, LIFT, PAD	1		33A	RB020	VALVE, SOLENOID (NOT SHOWN)	1
13	MO212	GEARMOTOR, DRIVE, PAD	1		33B	PY349	COIL, SOLENOID (NOT SHOWN)	1
14	MP084	BRUSH, CARBON, MOTOR	4		34	RC115	FITTING, 1/2” NPT	1
15	VE492	SCREW, M10 X 25	4		35	SZ033	BRUSH, NYLON	1
16	DD406	NUT, HEX, M10	2		36	WE231	SCREW, 3/8” X 3/4”	4
17	FS002	CLAMP, 12-20MM	1		37	RO456	WASHER, FLAT, 10MM	4
18	RC112	FITTING, ELBOW, 10MM	1		38	FS002	CLAMP, 12-20MM	1
19	GR138	BUSHING, RUBBER	1		39	PY548	CONNECTOR, SOLENOID	1
20	TB207	HOSE, DELIVERY, SOLUTION	1		40	MP298	BOOT, CABLE	2
21	SU426	BRACKET, MOUNT, MOTOR	1		41	VA408	SCREW, C. SINK, M4 X 16	1
22	DT161	SPACER, FLANGE	1		42	ML139	SPRING, PAD	1
