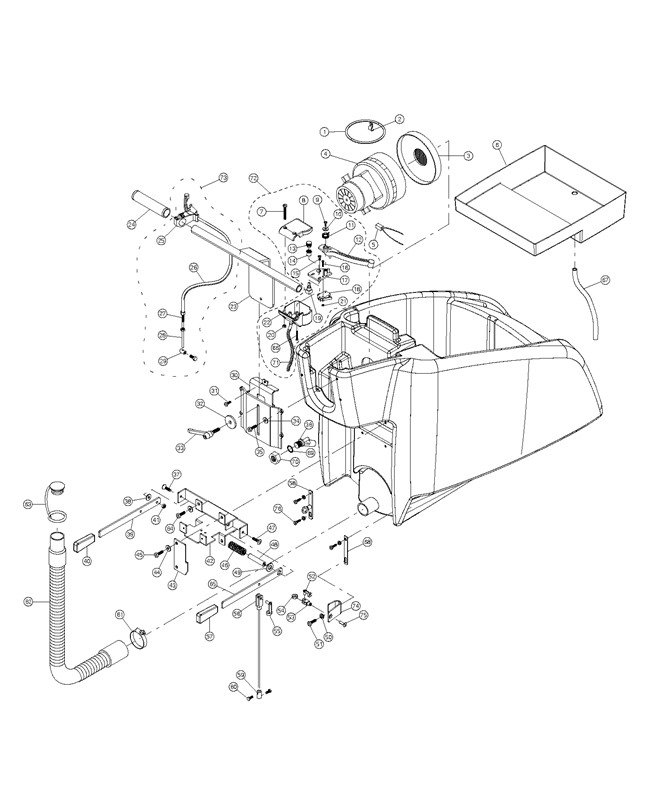

| Item | Part Number | Description | QTY | | Item | Part Number | Description | Qty |
| 1 | GI021 | RING, MOTOR, VAC | 1 | | 39 | LV293 | LEVER, SOLUTION | 1 |
| 2 | MI082 | CLAMP | 1 | | 40 | VP055 | GRIP, LEVER, M4 X 20 | 1 |
| 3 | GL019 | FILTER, GASKET | 1 | | 41 | DD453 | NUT, LOCK, M6 | 1 |
| 4 | MO180 | MOTOR, VACUUM, 24V | 1 | | 42 | SU430 | BRACKET, PLUG, CHARGER | 1 |
| 5 | MP239 | BRUSH, CARBON | 1 | | 43 | PT182 | PLATE, CATCH, LEVER | 1 |
| 6 | SB153 | TRAY, BATTERY | 1 | | 44 | RO403 | WASHER, M6 | 2 |
| 7 | VS216 | SCREW, M5 X 35 | 2 | | 45 | VC423 | SCREW, M6 X 16 | 2 |
| 8 | CO175 | COVER, HOUSING | 1 | | 46 | ML100 | SPRING | 1 |
| 9 | VA264 | SCREW, SELF THR, 3.5 X 13 | 1 | | 47 | VS423 | SCREW, C.SINK, M6 X 16 | 1 |
| 10 | RO301 | WASHER, FLAT, 6 X 18 | 1 | | 48 | PE199 | PIN, LIFT, SQUEEGEE | 1 |
| 11 | ML125 | SPRING | 1 | | 49 | RO406 | WASHER, FLAT, M12 | 1 |
| 12 | LV297 | LEVER | 1 | | 50 | RO454 | WASHER, LOCK, M6 | 4 |
| 13 | IG023 | GEAR, PLASTIC | 1 | | 51 | VC423 | SCREW, M6 X 16 | 1 |
| 14 | BO071 | BUSHING, POTENTIOMETER | 1 | | 52 | MI006 | PIN, YOKE | 1 |
| 15 | VC400 | SCREW, M3 X 16 | 1 | | 53 | SN001 | YOKE, END, M6 | 1 |
| 16 | VS229 | SCREW, M3 X 18 | 1 | | 54 | BO158 | BUSHING, CABLE | 1 |
| 17 | SU455 | SUPPORT | 1 | | 55 | MI028 | PIN, YOKE, M6, w/ SPRING | 1 |
| 18 | IN009 | MICROSWITCH | 1 | | 56 | MI189 | CABLE, M3 X 970MM, w/ END YOKE | 1 |
| 19 | PY612 | POTENTIOMETER | 1 | | 57 | VP055 | GRIP, LEVER, M4 X 20 | 1 |
| 20 | DD252 | NUT, LOCK, M5 | 1 | | 58 | LM574 | RAIL, CABLE | 1 |
| 21 | DD250 | NUT, LOCK, M3 | 1 | | 59 | MI146 | TERMINAL, CABLE | 1 |
| 22 | CO176 | HOUSING, POTENTIOMETER | 1 | | 60 | VE221 | SCREW, M5 X 8 | 2 |
| 23 | MN053 | HANDLE | 1 | | 61 | FS011 | CLAMP, HOSE | 1 |
| 24 | MN058 | GRIP, HANDLE | 2 | | 62 | TB156 | HOSE, DRAIN | 1 |
| 25 | LV296 | LEVER, BRAKE | 1 | | 63 | TA002 | PLUG, HOSE | 1 |
| 26 | MI190 | SHEATH, CABLE, BRAKE | 1 | | 64 | VC422 | SCREW, M6 X 12 | 2 |
| 27 | MI191 | ATTACHMENT, WIRE, BRAKE | 1 | | 65 | LV292 | LEVER, LIFT, SQUEEGEE | 1 |
| 28 | MI192 | WIRE, BRAKE | 1 | | 66 | VA258 | SCREW, SELF THR, 3.9 X 45 | 1 |
| 29 | MI193 | TERMINAL, CABLE | 1 | | 67 | TB202 | HOSE, 6MM | 1 |
| 30 | SU410 | SUPPORT, HANDLE | 1 | | 68 | LM434 | PLATE, STRAP, TANK | 1 |
| 31 | VC910 | SCREW, M5 X 16 | 1 | | 69 | GR146 | GASKET, SWITCH, FLOAT | 1 |
| 32 | VI020 | WASHER | 1 | | 70 | GH038 | NUT, SWITCH, FLOAT | 1 |
| 33 | VP042 | KNOB, LEVER, M8 X 20 | 1 | | 71 | CW092 | CABLE, WIRING, POT. | 1 |
| 34 | RO403 | WASHER, FLAT, M6 | 4 | | 72 | KIT459 | LEVER, POTENTIOMETER, ASM. | 1 |
| 35 | VC423 | SCREW, M6 X 16 | 4 | | 73 | KIT442 | LEVER, BRAKE, ASM. | 1 |
| 36 | GL022 | SWITCH, FLOAT | 1 | | 74 | LM575 | BRACKET, SUPPORT, CABLE | 1 |
| 37 | VS423 | SCREW, C.SINK, M6 X 16 | 1 | | 75 | VS421 | SCREW, C.SINK, M6 X 12 | 1 |
| 38 | RO911 | WASHER, WAVE, M8 | 1 | | 76 | VS422 | SCREW, M6 X 12 | 3 |
