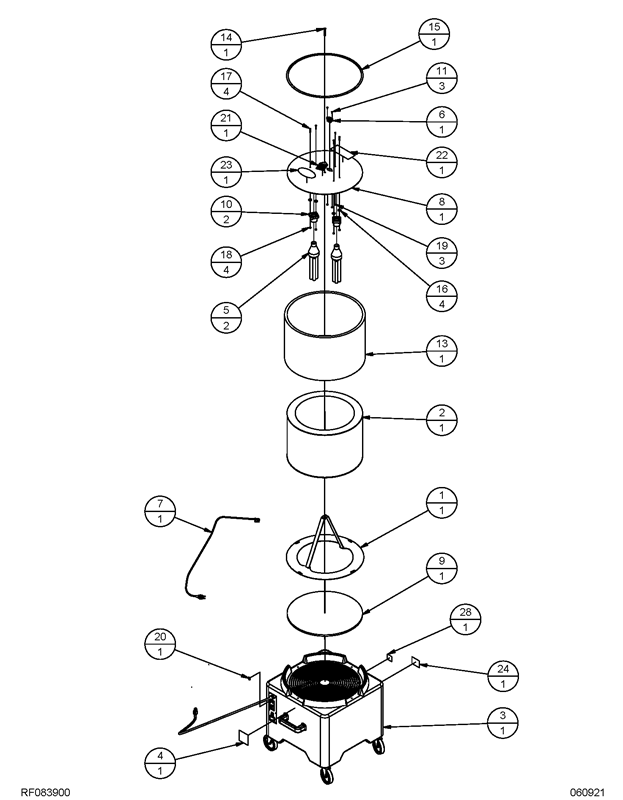

250AP Upper Assembly RF083900

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	MP545700	WLDMT, BASE, 250AP	1	15	IN1015	TRIM, BATTERY TRAY, 4.625 FT	1
2	MP542200	FILTER, HEPA, 18" O.D.	1	16	NB031500	WASHER, 5/16", BONDED NEOPRENE	4
3A	MP54180	FAN, 16.5", 2-SPD, 120V	1	17	NB073900	SCREW, 8-32 X 1", RH, PHILLIPS	4
3B	MP547100	FAN, 16.5", 2-SPD, 230V (250AP230)	1	18	NB9710	NUT, KEPS, 8-32, ZINC	4
4	MP498300	DECAL, APEC, 3"	1	19	NB9530	NUT, LOCK/WASHER, 6-32	3
5A	MP542100	BULB, UV-C, 36W, 120V	2	20	98464A	1/4 CABLE/TUBING CLAMP	1
5B	MP543400	BULB, UV-C, 36W, 230V (250AP230)	2	21	MP545300	HANG TAG, WARNING, 250AP	1
6	MP234200	INLET, POWER, AC, SCREW MOUNT	1	22	MP545400	DECAL, WARNING, 250AP	1
7A	MP542900	CORD, C13, 3 FT.	1	23	MP545100	DECAL, 250AP	1
7B	MP547000	CORD, C14 TO C13 RIGHT ANGLE, 3 FT (250AP230)	1	24A	SN017100	TAG, SERIAL, 250AP115, 250AP	1
8	MP543600	LID, AIR PURIFIER, 18"	1	24B	SN017200	TAG, SERIAL, 250AP115C, 250AP	1
9	MP543500	FILTER, UV LIGHT. 18"	1	24C	SN017300	TAG, SERIAL, 250AP230, 250AP	1
10	MP543000	HOLDER, LAMP, E27, PORCELAIN	2	25	MP543100	WIRE, HARNESS, AIR PURIFIER, WHITE (NOT SHOWN)	1
11	85313C	SCREW 6-32 X 3/8 PAN HD	3	26	MP543200	WIRE, HARNESS, AIR PURIFIER, BLACK (NOT SHOWN)	1
13	MP542300	PRE-FILTER, HEPA, 18" O.D.	1	27	MP543300	WIRE, HARNESS, AIR PURIFIER, GROUND (NOT SHOWN)	1
14	85333A	1/4-20 x 2 PAN PHIL M/S	1	28	MP545500	DECAL, PROP 65, 250AP	1
